Clearly visible LED indicator
Innovative QR code printed on housing
Advanced 'qTeach' operation
Flexible fastening through mounting holes
Baumer 'Pin Point' LED
Type | Through beam sensor |
---|---|
Emitter / Receiver | Receiver |
Actual Range Sb | 25 m |
Nominal Range Sn | 40 m |
Alignment / Soiled Lens Indicator | Flashing light indicator |
Light Indicator | LED yellow |
Power On Indication | LED green |
Sensitivity Adjustment | qTeach |
Alignment Optical Axis | < 1 |
Response Time / Release Time | < 0.49 ms |
Voltage Supply Range +Vs | 10 30 VDC |
Current Consumption Max. (No Load) | 40 mA |
Current Consumption Typ. | 30 mA |
Voltage Drop Vd | < 3 VDC |
Output Function | Light / dark operate |
Output Circuit | NPN complementary |
Output Current | 100 mA |
Short Circuit Protection | Yes |
Reverse Polarity Protection | Yes |

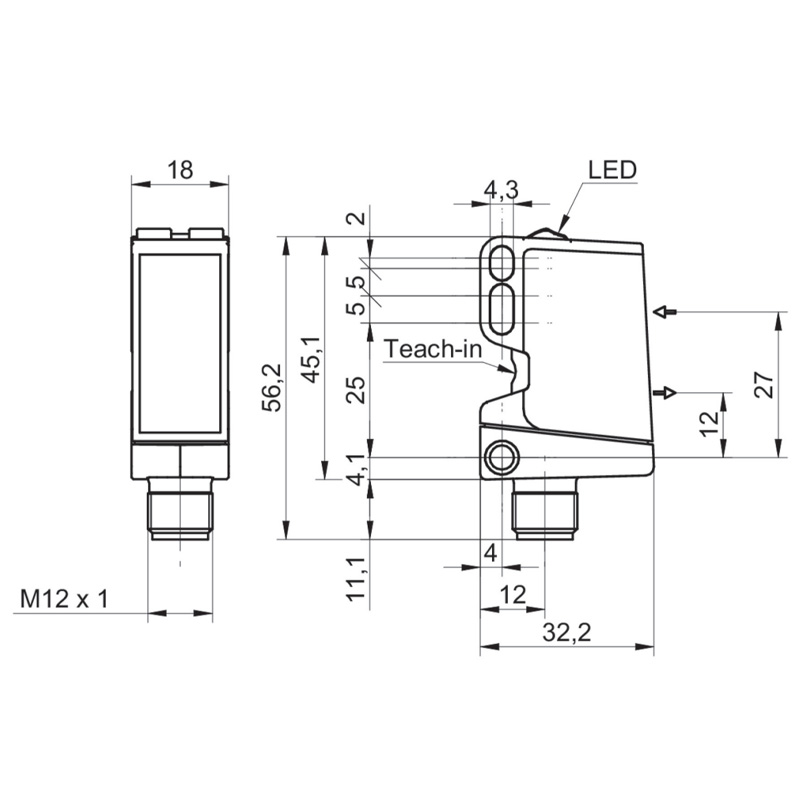

Width / Diameter | 18 mm |
Height / Length | 45 mm |
Depth | 32 mm |
Design | Rectangular |
Housing Material | Plastic (ASA, PMMA) |
Front (Optics) | PMMA |
Connection Types | Cable 4 pin, 2 m |
Operating Temperature | -25 +60 ℃ |
Protection Class | IP 67 |
