USGT

Product Advantages

The USGT series in a metal housing are calibrated sensors that can be used to determine the edge position of film and paper. It is characterized by high repetition accuracy and is not sensitive to dirt.

Features

Large linearized analog range

Very high repeatability

Web edge control also with transparent materials

Resistant to dirt

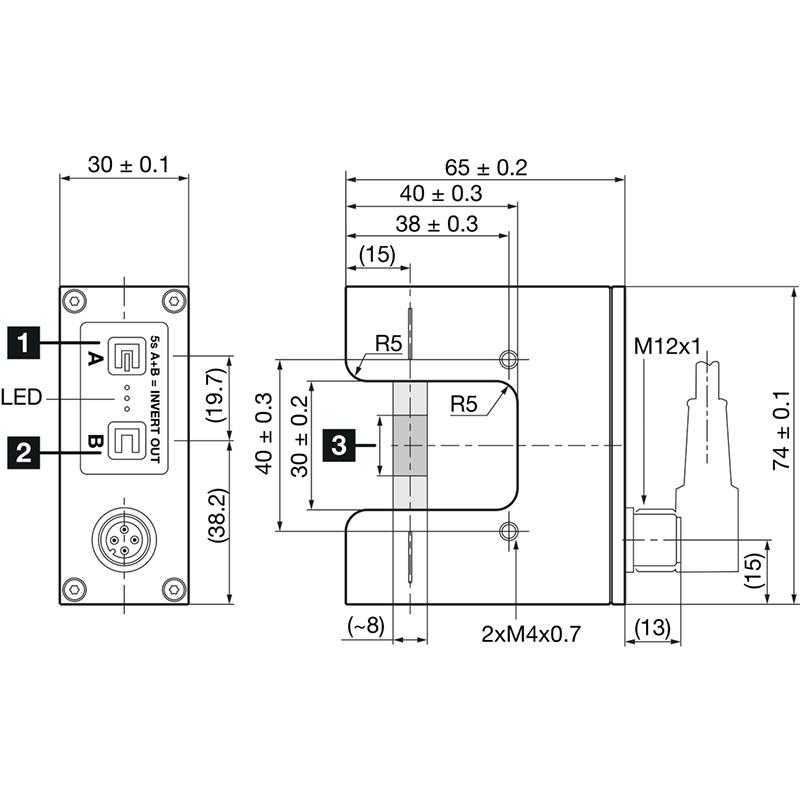

Product Size

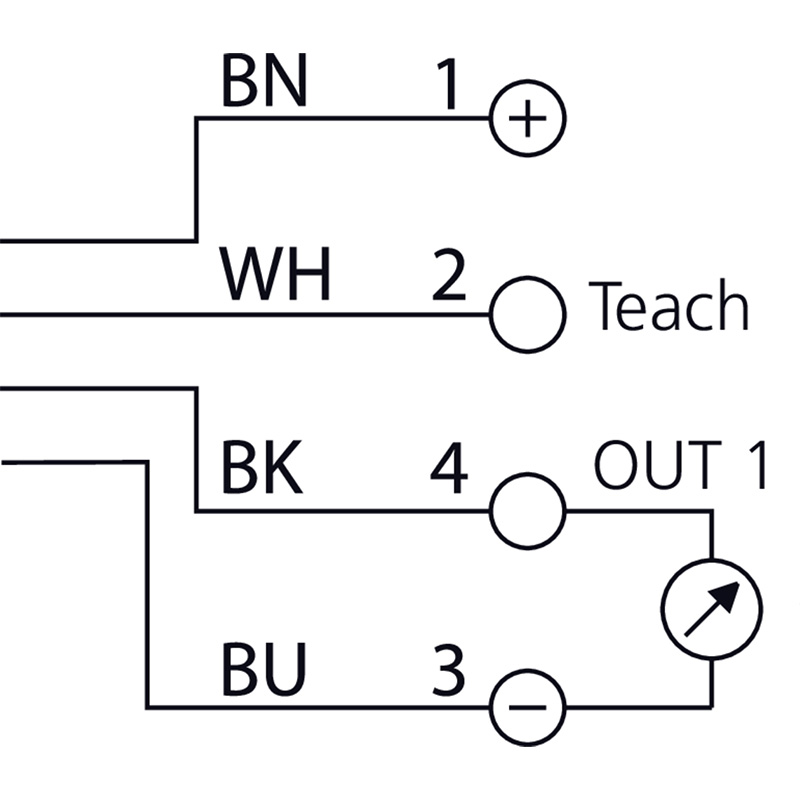

Product Circuit

Product Info

USG ultrasonic slot sensors are balanced products that determine the edge position of films and papers (transparent, opaque and reflective). The advantage of these sensors is their high repeatability. The product is dust resistant and features a robust metal housing with a high housing protection level.

Technical Specifications

Operating Voltage 12 ... 30 V DC
No-Load Current (Max.) 40 mA (24 V DC)
The Aftermath 10%
Insulation Compressive Strength 500 V
Housing Material Aluminum (black, anodized)
Protection Class III, operating at safe ultra-low voltage
Working Principle Ultrasonic beam type photoelectric switch
Evaluation Simulation Type groove
Analog Output 0 ... 10 V, 4 ... 20 mA
Width of the Notch 30 mm
Resolution 0.1 mm
Measuring Range 8 mm (typical)
Reproducibility 0.1 mm
Sensitivity Keyboard
Measurement Frequency 500 Hz
Working Environment Temperature 0 ... +60 ℃
Protection Level IP 67
Connector Plug, M12, 4 pins
Connecting Cable VKHM... / 4
