1.Strong anti-interference ability ensures stable operation.
2.Adjustable detection distance options to fit different application scenarios.
1.360° fully visible LED indicator for clear status visibility.
2.Supports 12-24VDC power supply with a built-in high-performance amplifier.
3.Made with durable stainless steel and copper housing.
| Model NO. | SL08D-SHST02-TNC F2M |
|---|---|

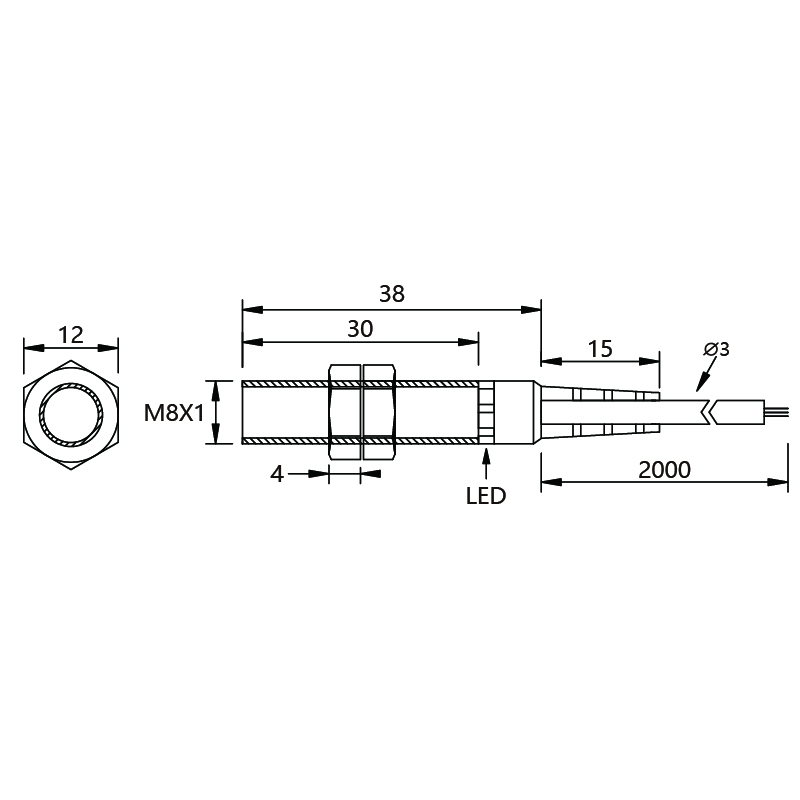

| Size | M8 |
| Certification | ISO, RoHS, CE |
| Name | Proximity Sensor |
| Power Supply | 12-24VDC |
| Output | two-wire NC |
| Case | Metal |
| Sensor Type | Shield, No-Shield |
| Transport Package | Carton |
| Specification | 35g |
| Trademark | Yakexi |
| Brand | Hongfei |
| Origin | China |
| Item | DC three-wire |
|---|---|
| Model number | SL08D-SHST02-TNC F2M |
| Detection distance | 2mm |
| Operating voltage | 12~24VDC±10% pulsation (P-P) |
| Current consumption | <10mA |
| Load current | 100mA |
| Leakage current | <0.01mA No-load |
| Residual voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Repeatability | <2% detection distance |
| Response frequency | 500kHz |
| Reaction time | 0.5ms |
| Power reverse protection | There are |
| Output short-circuit protection | There are |

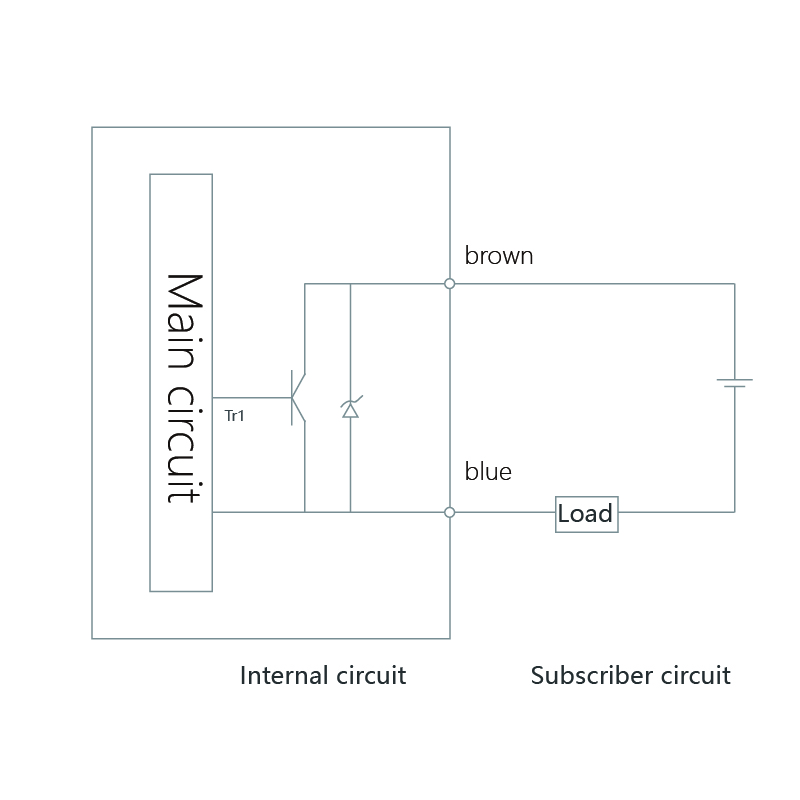

| Output mode | two-wire NC |
| Ambient temperature | -25℃~70℃ |
| Temperature drift | ±10% detection distance |
| Class of protection | IP67 |
| Impulse withstand voltage | 1000VAC 50~60Hz 1 min (Between the charging section and the housing) |
| Insulation resistance | ≥20MΩ (between the charging part and the housing) |
| Connection mode | Φ4*2m/3-wires/Φ4 lead 150mm with M8 connectorΦ |
| Shell material | Cuprous nickel+PBT+PVC |
| Net weight | About 32g |
