Switch detection areas by input (up to 64 types)
The front of the collision warning liDAR indicates the origin position
Can set any obstacle avoidance area, free editing and graphic Settings
Through the USB interface or network port of the PC, the radar setting monitoring area is connected,and each area can be freely set up three independent areas
| Model Number | HFLR1 |
|---|---|
| Production Process | Integration |
| Material | Plastic |
| IP Rating | IP65 |
| Certification | ISO |
| Customized | Customized |
| Transport Package | White Box |
| Specification | 400g |
| Trademark | Yakexi |
| brand | Hongfei |
| Origin | China |
| Model Number | HFLR1 |
|---|---|
| Maximum Range (m) with 90% Target Reflectivity | 20m |
| Minimum Range (m) with Target Reflectivity | 8m |
| Measurement Accuracy | ±30nm |
| Measurement Blind Zone | 0.1m |
| Scanning Angle Range | 270° |
| Scanning Frequency | 10°-30°(10°/15°/20°/25°/30°) |
| Sampling Frequency | 45KHZ |
| Repeatability | 20mm |
| Minimum Angular Resolution | Min. 0.08°(adjustable) |
| Power Supply Voltage | DC9~36 (typical value 12-24) |
| Operating Current | (0.17A/12V typical) |
| Laser for Distance Measurement | 905nm |
| Laser Divergence Angle | 12~15mrad |
| Total Power Consumption | ≤2w |
| Data Transmission Interface | Network port + serial port |
| Startup Time | ≤10s |
| Ambient Light | >50000lux |
| Operating Temperature | -15~55℃ |
| Storage Temperature | -30~75℃ |
| Operating Humidity | <85% |
| Protection Level/IP Rating | IP67 |
| Weight | <374g (Inclusive line) |

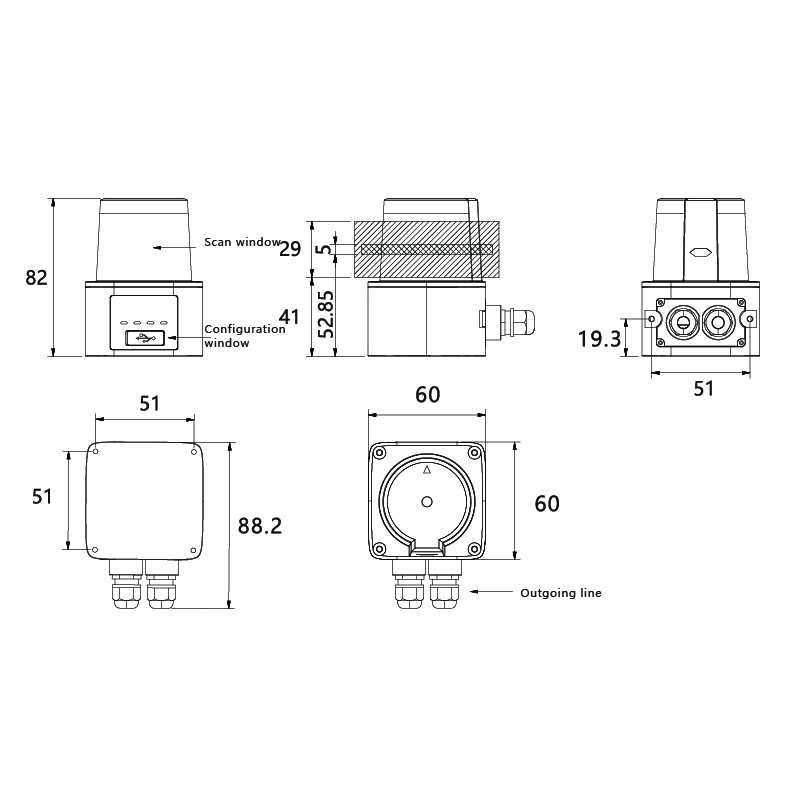

| Dimensions | 61*61*82 |
