Wide detection range suitable for various applications.
High stability, enhancing production efficiency.
Easy installation, adaptable to different environments.
High sensitivity, meeting fine detection needs.
Wide Detection Range:Sensing range from 50 to 2000mm with a spot size smaller than 5mm, eliminating the need for different sensors based on distance.
Stable Detection:Detects any workpiece regardless of color, saving evaluation and adjustment time.
Flexible Installation:Compact design allows for installation without restrictions, providing convenience and flexibility.
Long Detection Distance:Up to 2-meter detection range, capable of detecting objects as small as 1mm.
| Model NO. | SHFT-P200N |
|---|---|
| Material | Plastic |
| Feature | Low Temperature Resistant |
| IP Rating | IP66 |
| Certification | CE |
| Customized | Customized |
| Transport Package | Carton |
| Specification | 0.0749kg/pcs |
| Trademark | Hongfei |
| Origin | China |
| Model number | SHFT-P200N |
|---|---|
| Detection Distance | 0.05-2m @30% Reflectivity |
| Measurement Frequency | 1000Hz |
| Weight | 45g |
| Power Consumption | < 0.6W |
| Indicator Light | Action Indicator (Orange), Stability/Communication Indicator (Green) |
| Absolute Accuracy | ±40mm |
| Repeat Accuracy | ±5mm |

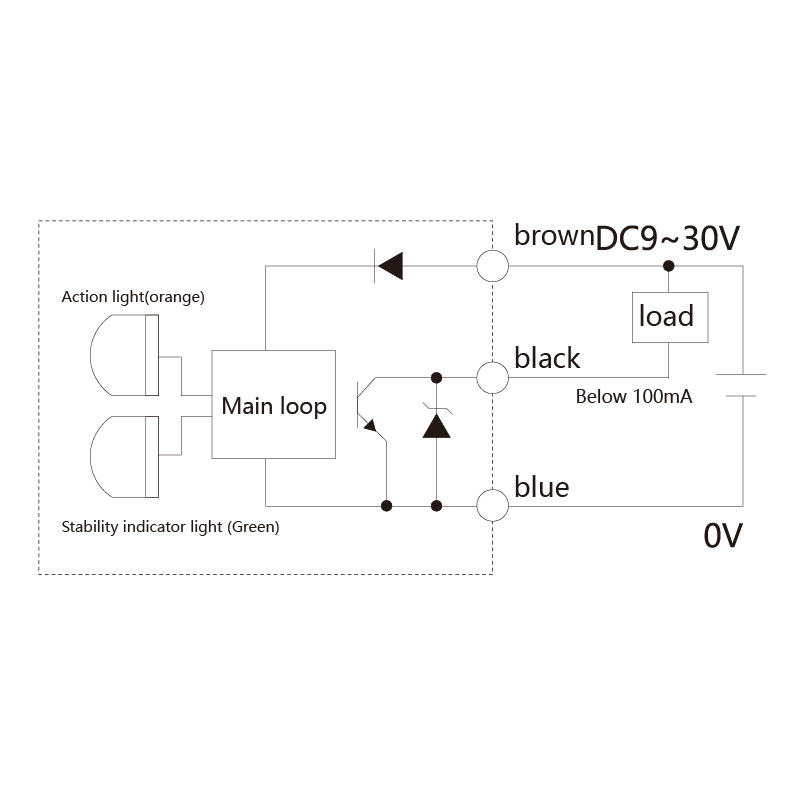

| Output Type | PNP/NPN/TTL Serial Port (Customizable) |
| Output Action | NO/NC Switchable, Switching Method Based on Button Press Duration |
| Output Mode | Instant/Delayed Response Mode, Switching Method Based on Button Press Duration |
| Max Load Current | 100mA |
| Max Load Voltage | 30V DC |
| Residual Voltage | < 1V |
| Light Source | Red Laser Diode |
| Beam Type | Red Visible Spot Laser |
| Wavelength | 650nm |
| Laser Class | Class 2 |
| Operating Voltage | 9~30V DC |
| Response Time | 1ms (50ms Adjustable) |
| Protection Circuit | Power Reverse Protection, Output Short Circuit Protection, Output Reverse Protection |
| EMC Protection | ElectroStatic Protection, EFT Protection, 500V Surge Protection |
| Protection Structure | ICE Standard IP64 |
| Anti-Ambient Light Ability | >3000Lux |
| Operating Temperature | -20°C ~ +55°C |
| Storage Temperature | -40°C ~ +70°C |
| Dimensions | 33*20*11mm |
| Material | Shell: PC+ABS |
