HF.CGQ-ELB-350N

Product Advantages

Features

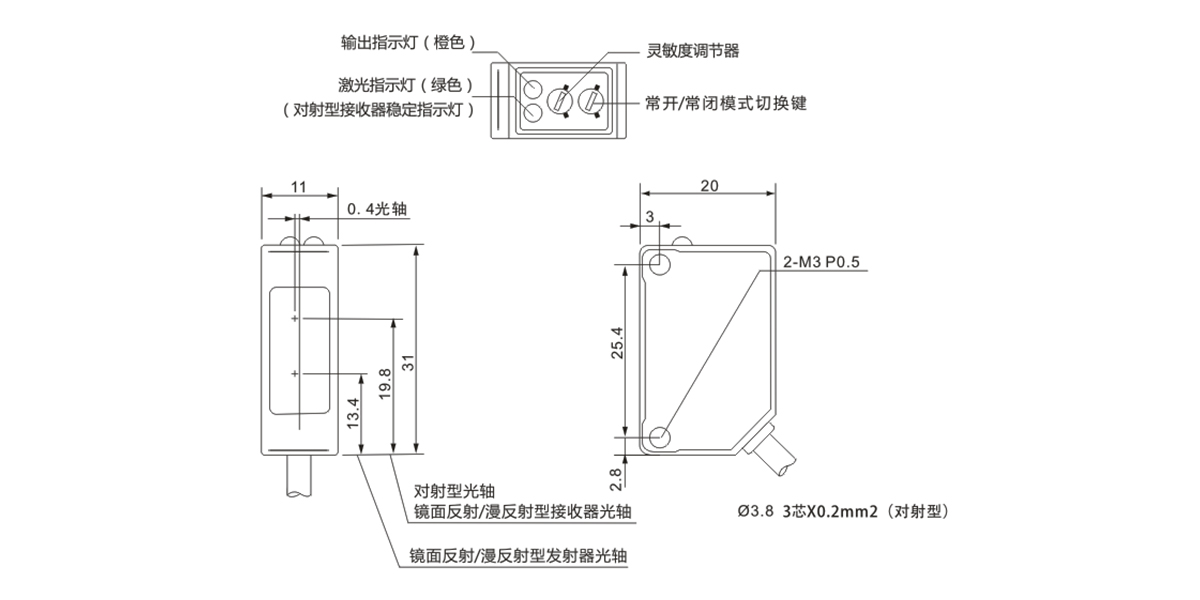

Product Size

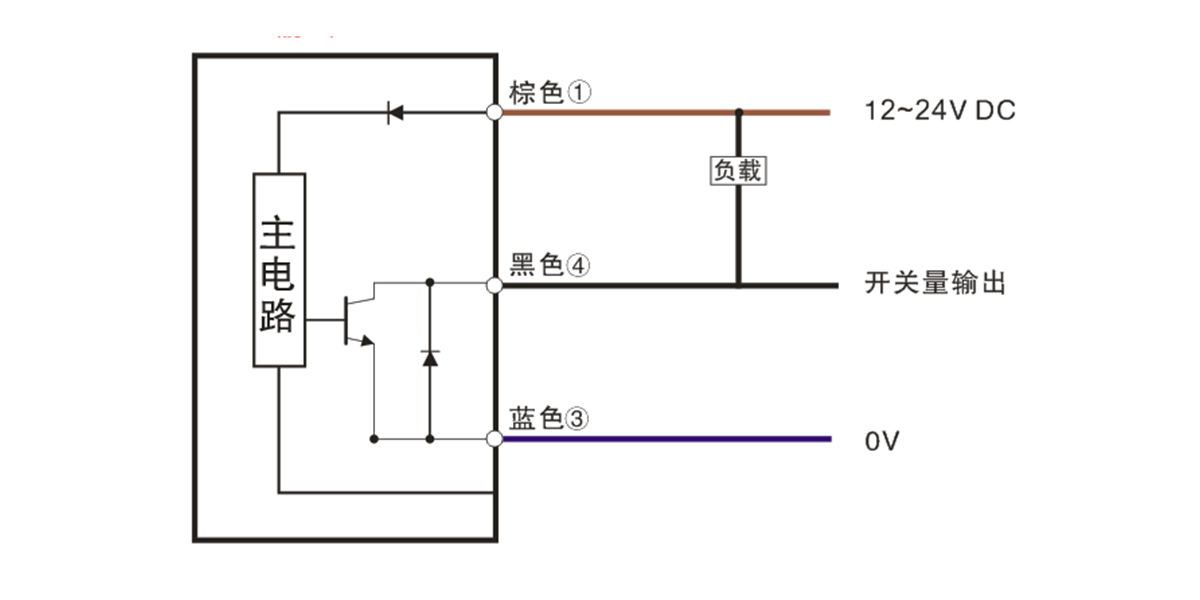

Product Circuit

Product Info

Model NO. ELB-350N
Material Plastic
Feature Low Temperature Resistant
IP Rating IP65
Certification CE
Customized Customized
Model Elb-350n
Detection Method Diffuse Reflection - Background Suppression Type
Detection Distance 20~350mm
Light Source Laser 650nm
Output Type NPN
Operating Voltage 10~24V DC
Transport Package a Pieces /Box
Specification Bracket, screw
Trademark AkuSense
Origin Guangdong, China
HS Code 9031499090
Production Capacity 50000 pieces/Year

Technical Specifications

Model ELB-350N
Detection Method Diffuse Reflection - Background Suppression Type
Detection Distance 20~350mm
Set Distance 50~350mm
Spot Size 1.5mm/350mm
Switch Mode L.on (light receiving action)/D.on (shading action) switchable
Indicator Light Output indicator: orange; power indicator: green
Response Time ≤0.3ms
Sensitivity Adjustment 4-turn regulator
Light Source Laser 650nm, Class 1
Operating Voltage 10~24V DC
Output Mode NPN
Current Consumption ≤20mA
Degree of Protection IP66
Ambient Temperature -10oC~+70oC, no freezing
Environment Humidity 35%~85%RH, non-condensing
Anti-Vibration 10~55Hz, 1.5mm amplitude, 2 hours each in X, Y, Z directions
Impact Resistance 50G (500m/s2)
Minimum Detectable Substance 0.5mm
Load Current ≤100mA
Residual Voltage <1V
Circuit Protection Reverse polarity protection, output overcurrent protection, interference light protection
Shell Material Shell: ABS with glass fiber; Lens: PMMA
Ambient Illumination Sunlight ≤5000 Lux, incandescent lamp ≤20000 Lux, LED ≤2000 Lux
Insulation Resistance More than 20M between all power connection terminals and the shell (based on DC250V)
Hysteresis Range ≤5%SN
Accessories Bracket, screw
