FD-M08D

Product Advantages

Multiple Models Available:Various models designed to suit different applications and environments.
Convenient Installation:Comes with fixed steel straps and clamps for easy and secure installation.

Features

The blue line is made from oil-resistant PVC material, ensuring a high level of protection.
Standard Soft Wire:Uniformly supplied with soft wire for enhanced flexibility.

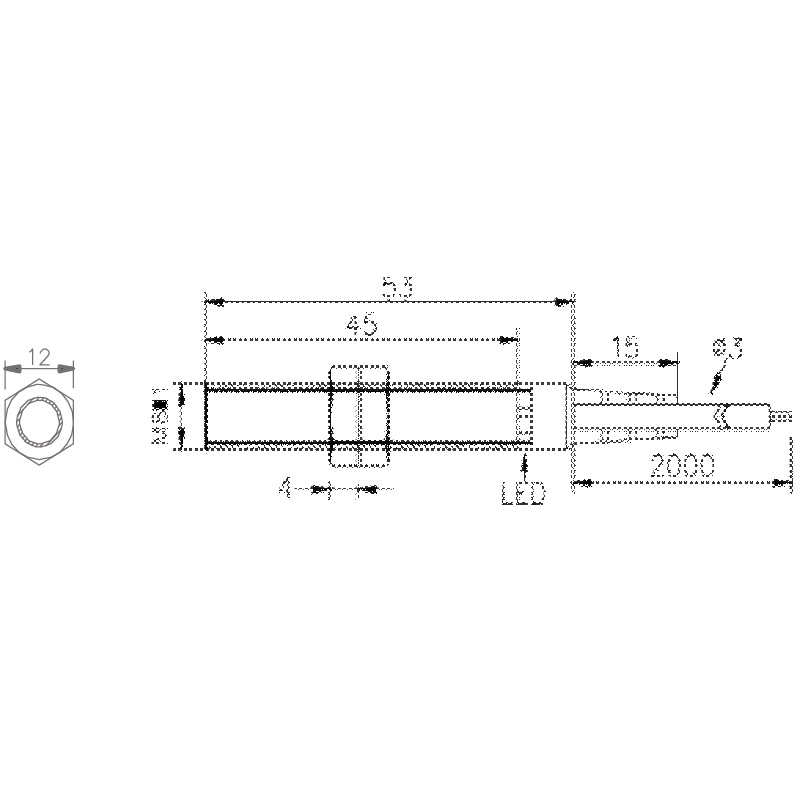

Product Size

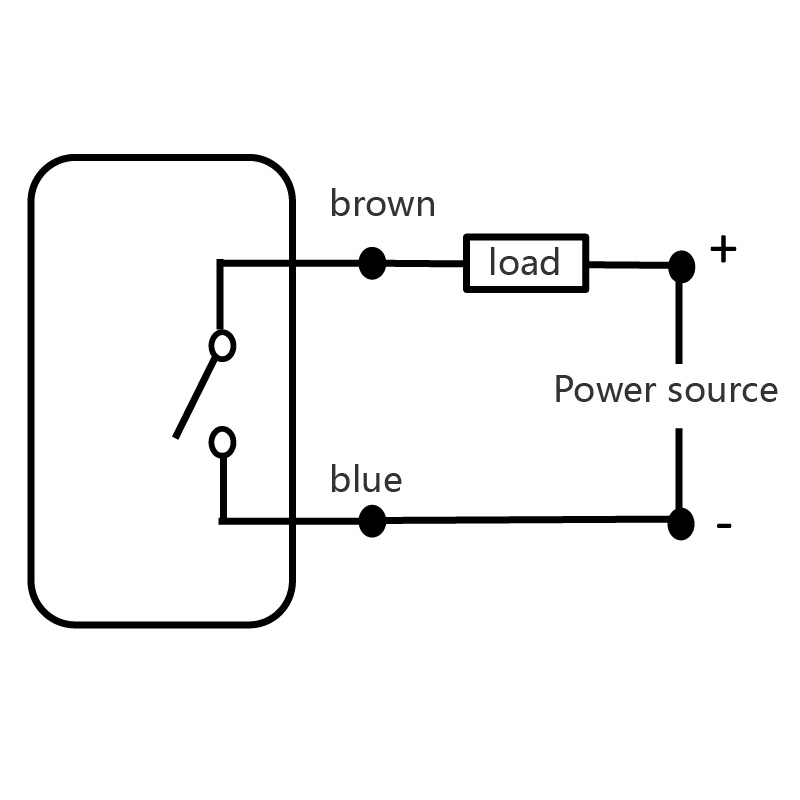

Product Circuit

Product Info

Model HSF-M08D
Installation Method Unshielded type
Detection Distance 10mm+50%
Recommended Use Distance 8mm
Hysteresis Distance 1~20% detection distance
Adjustment Distance Range Untunable
Standard Detection Object Φ4.0*8mm (N35 magnet)
Operating Voltage 12~24VDC+10% pulse (P-P) less than 10%
Consumption Current <0.01mA
Load Current 100mA MAX
Leakage Current <0.01mA NO Load
Residual Voltage ≤3V DC (load current 100mA, wire 2 meters)
Repeat Accuracy <5% detection distance
Sensing Frequency 100Hz

Technical Specifications

Model HSF-M08D
Installation Method Unshielded type
Detection Distance 10mm+50%
Recommended Use Distance 8mm
Hysteresis Distance 1~20% detection distance
Adjustment Distance Range Untunable
Standard Detection Object Φ4.0*8mm (N35 magnet)
Operating Voltage 12~24VDC+10% pulse (P-P) less than 10%
Consumption Current <0.01mA
Load Current 100mA MAX
Leakage Current <0.01mA NO Load
Residual Voltage ≤3V DC (load current 100mA, wire 2 meters)
Repeat Accuracy <5% detection distance
Sensing Frequency 100Hz
Response Time 5ms
Power Reverse Protection There is no
Output Short-Circuit Protection There is no
Output Mode Magnetic reed tube, Two-wire NO
Connection mode Φ3.0*2M/2-wires, Φ3.0*5M/2-wires Soft wires
Class of protection IP67
Ambient temperature -40~70℃ no frost, freezing (storage temperature -25~70℃ no frost, freezing)
Temperature drift Detection distance of ±10% at <25℃
Relative humidity 35~95%RH frost-free (storage humidity 35~95% frost-free)
Insulation resistance ≥20MΩ (between the charging part and the housing)
Impulse withstand voltage 1000VAC 50~60Hz 1min (between charging part and housing)
External dimension 8*53mm
Shell material PBT+ copper nickel plated +PVC wire
Net weight About 79g
