Type 3 Safety Laser Scanner complies with IEC61496-1/-3
70 sets of safety zone and warning zone combinations
Safety zone up to 4m and warning zone(s) up to 15m.
8 Individual Sector indicators and various LED for clear status indication
Reference boundary function prevents unauthorized change of scanner position
Safety laser scanner, OS32C, safety radius 3 m, warning zone 10 m, PLd & Cat 3 (ISO 13849-1) , 24 VDC, back location cable exit
Small size, less weight and low-power consumption are extending operation time of battery powered systems like automated guided vehicles (AGVs). Safety laser scanner OS32C covers all these requirements in collision avoidance, presence and intrusion detection applications. Maintenance is made simple since diagnosis is clear having LED displays.
| Type of Safety | According to IEC 61496-1 3 |
|---|---|
| Maximum Safety Range | 3 m |
| Maximum Warning Range | 10 m |
| Cable Entry Direction | Back |
| Type of Switching Output | OSSD PNP |
| Connection Method | Pigtail Connector |
| Key Features | Configurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoring |
| Type of Protection | Hand Protection |
| Detection Capability | 70 mm |
| Suitable for Safety Functions | Yes |
| Scan Angle | 270 |
| Scanning Interval | 0.4 Hz |
| Response Time | 80 ms |
| Number of Safety Fields | 140 |
| Wavelength of the Sensor | 905 nm |
| Number of Protected Semiconductor Outputs | 2 |
| Number of Semiconductor Outputs with Signalling Function | 2 |
| Laser Protection Class | Class 1 |
| Supply Voltage | DC 16.8-30 V |
| Voltage Type | DC |
| Max. Output Current at Protected Output | 250 mA |
| Degree of Protection (IP) | IP65 |
| Ambient Temperature | -10-50 ℃ |

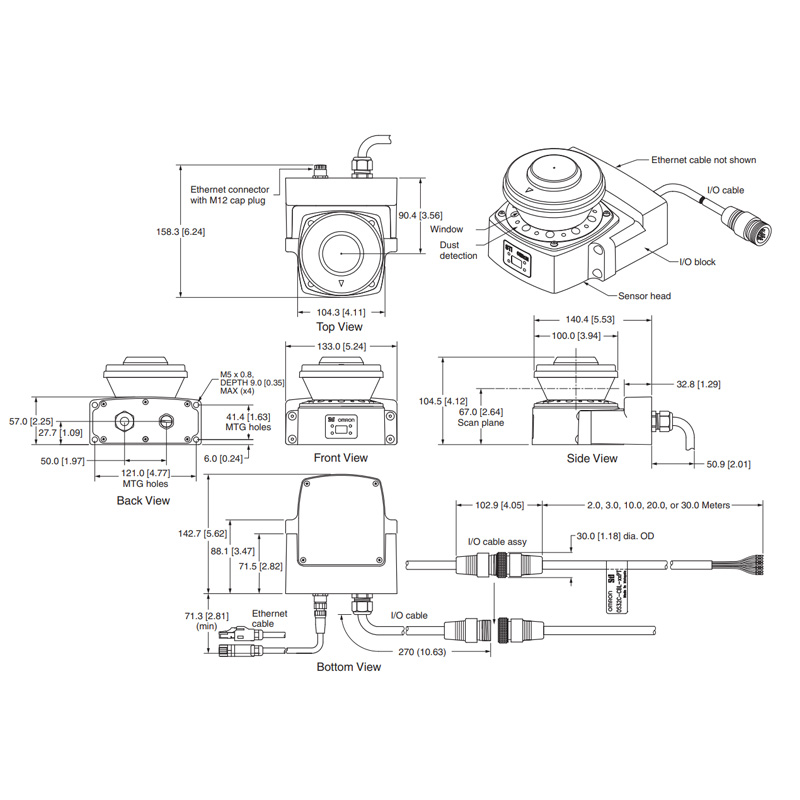

| Overall Length of Sensor | 143 mm |
| Height of Sensor | 105 mm |
| Width of Sensor | 105 mm |
