Adaptability for Various Distances: Provides optimized spot sizes for both short and long ranges, catering to diverse application scenarios.
Spot Size at Close Range: Light spot size is approximately 6mm within a distance of 100mm, ideal for precise detection.
Spot Size at Extended Range: Light spot size is approximately 9mm within a distance of 300mm, suitable for larger target detection.
| Model number | BGD-G05P |
|---|---|
| Return gap | <5% Detection distance |
| Illuminant | 650nm red modulated light |
| Repeatability | 2% Detection distance |
| Operating voltage | 12~24VDC +10% pulse (P-P) less than 10% |
| Current consumption | <30mA |
| Load current | 100mA |
| Response frequency | 300Hz |
| Reaction time | 2ms |
| Power reverse protection | Yes |
| Output short-circuit protection | 150mA overcurrent protection (thermal protection) |

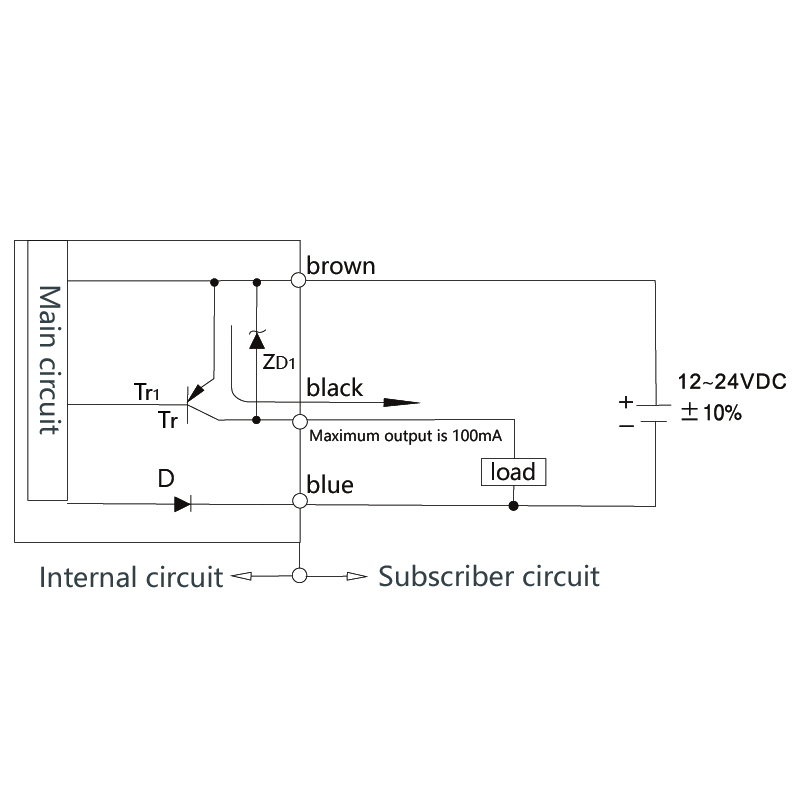

| Output mode | NPN.NO.OR.NC / PNP.NO.OR.NC |
| Isolation resistance | ≥20MΩ (between the charging part and the housing) |
| Ambient humidity | 35~85% HR relative humidity |
| Class of protection | IP65 |
| Detection mode | Background suppression diffuse reflection type |
|---|---|
| Model number | BGD-G05P |
| Detection distance | 0~100mm+20% (white card) / 3~95mm+20% (black card) |
| Detection blind area | White card: 0mm /Black card: 2mm/Black matte: 5mm or less /Black light: 7mm |
| Return gap | <5% Detection distance |
| Adjustable range | Minimum distance: <20mm, Maximum distance: >150mm (White cardstock) |
| Standard test substance | 100x100mm Black cardstock/White cardboard |
| Illuminant | 650nm red modulated light |
| Repeatability | 2% Detection distance |
| Operating voltage | 12~24VDC +10% pulse (P-P) less than 10% |
| Current consumption | <30mA |
| Load current | 100mA |
| Leakage current | <0.01mA No Load |
| Residual voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Response frequency | 300Hz |
| Reaction time | 2ms |
| Power reverse protection | Yes |
| Output short-circuit protection | 150mA overcurrent protection (thermal protection) |
| Output mode | NPN.NO.OR.NC / PNP.NO.OR.NC |
| Isolation resistance | ≥20MΩ (between the charging part and the housing) |
| Insulation withstand voltage | 1000VDC 50~60Hz 1min (between the charging part and the housing) |
| Ambient temperature | -10~50℃ (no frost or ice) |
| Ambient humidity | 35~85% HR relative humidity |
| Ambient illumination meter | Daylight: less than 5,000LX Light: less than 2000LX |
| Storage temperature | -20~60℃ (no frost, ice) |
| Storage humidity | 35~95% HR relative humidity |
| Class of protection | IP65 |
| Connection mode | Φ4.02M/3-wires / Φ4.05M/3-wires / Connecting line |
| Shell material | PBT+PC |
| Net weight | Approx. 50g / 120g |
