Multiple Output Types: It provides 2 NPN outputs and 2 PNP outputs, accommodating different wiring needs and enhancing application flexibility.
Short Circuit Protection: Equipped with short circuit protection to effectively prevent damage caused by accidental short circuits, improving safety and reliability.
Standard polarized lens reflection type.
90° elbow and direct exit wiring configurations.
Tail protection structure for enhanced durability.
| Model number | SC18AIR-P500N |
|---|---|
| Detection distance | 5mm |
| Detection mode | Relative form |
| Illuminant | 850nm Infrared modulated light |
| Operating voltage | 12~24VDC+10% pulse (P-P) less than 10% |
| Load current | 100MA |
| Leakage current | ＜0.01mA No Load |
| Response frequency | 600Hz |

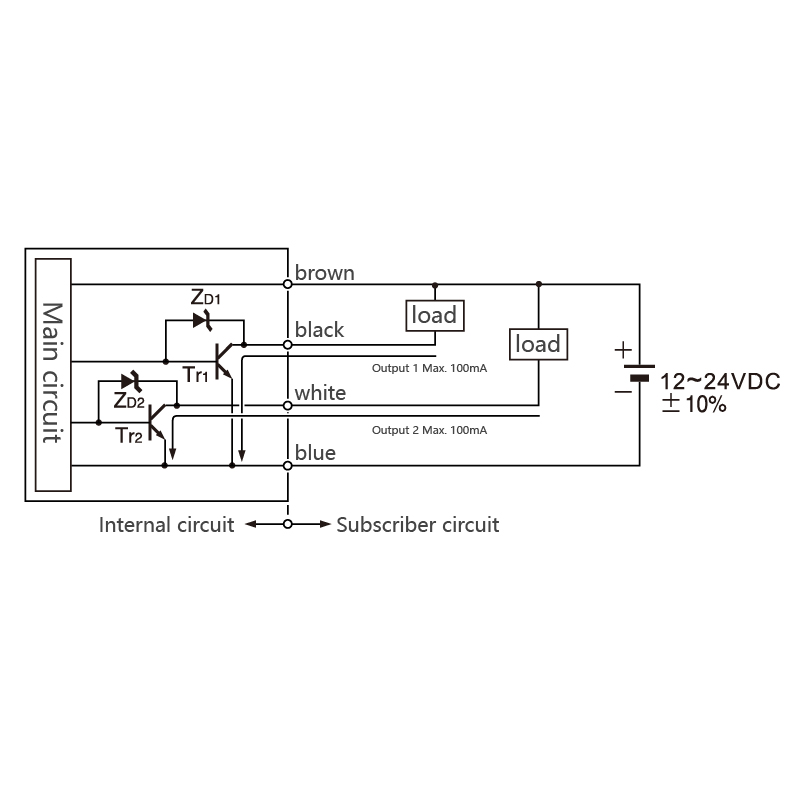

| Output mode | NPN.NO / NPN.NC |
| Shell material | ABS+PC+PVC |
| Class of protection | IP65 |
| Trademark | Yakexi |
| Brand | Hongfei |
| Origin | China |
| Model number | SC18AIR-P500N |
|---|---|
| Detection distance | 5m |
| Detection mode | Relative form |
| Minimum detector | Opaque object Φ5.0*0.8mm |
| Standard test substance | Opaque object Φ8.0*0.8mm |
| Sensitivity regulation | There are |
| Illuminant | 850nm Infrared modulated light |
| Hysteresis | ＜2% Detection distance |
| Operating voltage | 12~24VDC+10% pulse (P-P) less than 10% |
| Current consumption | ＜20MA |
| Load current | 100MA |
| Leakage current | ＜0.01mA No Load |
| Residual voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Repeatability | ＜2% Detection distance |
| Response frequency | 600Hz |
| Power reverse protection | There are |
| Output short-circuit protection | There are |
| Output mode | NPN.NO / NPN.NC |
| Reaction time | 1ms |
| Isolation resistance | >20MΩ (between the charging part and the housing) |
| Insulation withstand voltage | 1000VDC 50~60Hz 1mih (between the charging part and the housing) |
| Ambient temperature | -10~50°C (no frost or ice) |
| Ambient humidity | 35~85% HR relative humidity |
| Ambient illumination | Daylight: less than 3,000LX, Light: less than 2,000LX |
| Storage temperature | -20~60 °C (no frost, ice) |
| Storage humidity | 35~95% HR relative humidity |
| Class of protection | IP65 |
| Connection mode | Φ4.0*2M/2-wires, Φ4.0*2M/3-wires, Φ4.0*2M/4-wires |
| Shell material | ABS+PC+PVC |
| Net weight | Approx. 58g / 58.5g / 59g / 59g / 114g |
