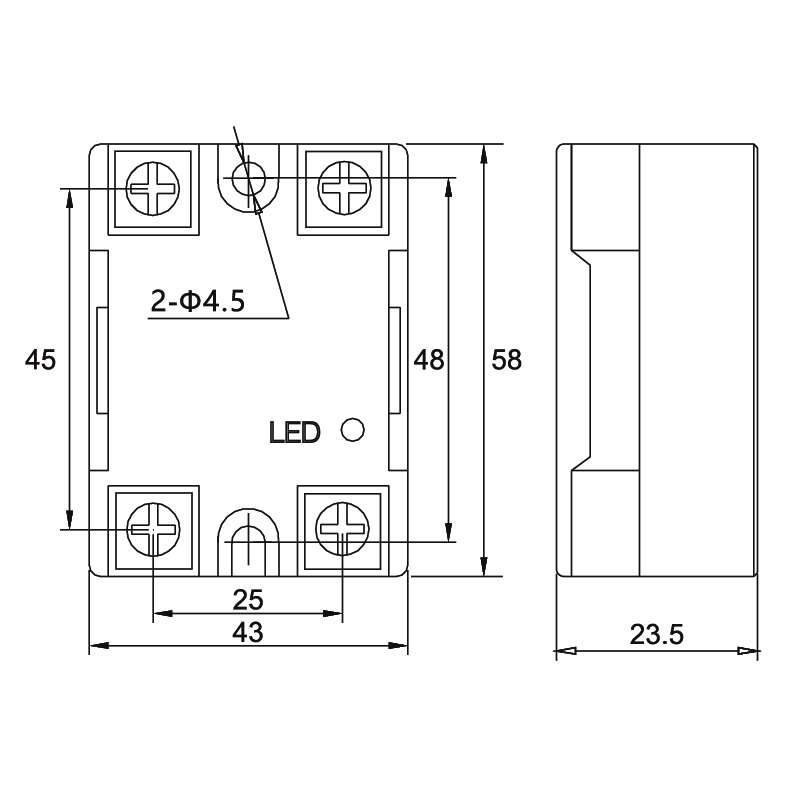

Screw mounted a horizontal, DC controlled AC solid state relay
Patent design
IGBT/ FET normally open output

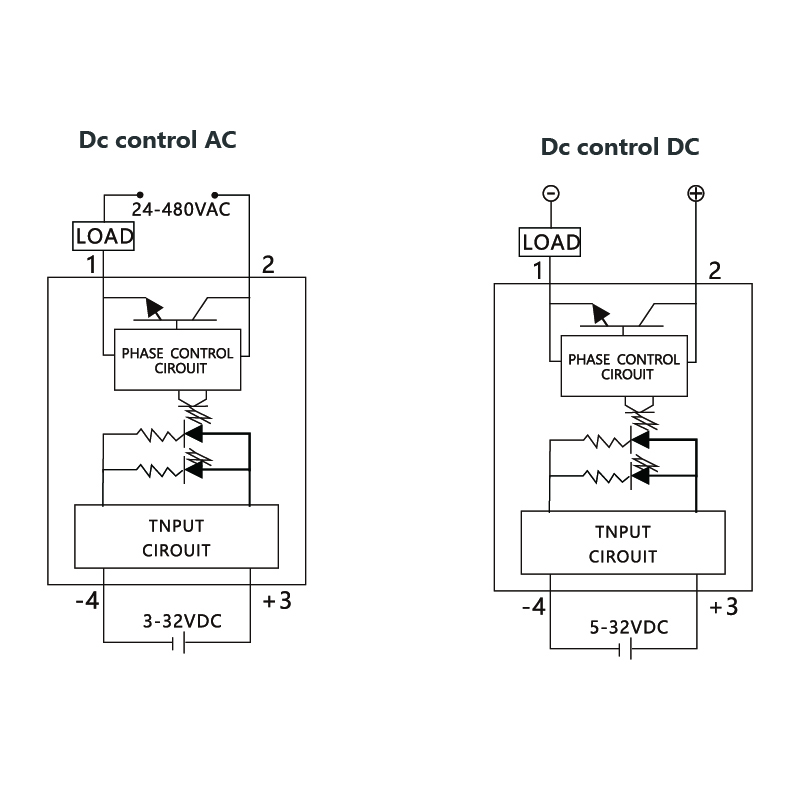

The DC-AC DC signal controls the AC load
Transformer isolation
SMD mounting process
LED indicates working status
| Product Model | SRHF-22P-25A |
|---|---|
| Control Voltage | 3-32VDC |
| Control Current | 6-15mA |
| Reverse Voltage | 30VDC |
| Guaranteed Turn-on Voltage | 3VDC |
| Load Voltage | 24-480VAC |
| Product Model | SRHF-22P-10A |
|---|---|
| Control Voltage | 3-32VDC |
| Control Current | 6-15mA |
| Reverse Voltage | 30VDC |
| Guaranteed Turn-on Voltage | 3VDC |
| Load Voltage | 24-480VAC |
| Maximum Load Current | 25A |
| Minimum Load Current | 0.06A |
| Forward Voltage Drop | ≤1.3VAC |
| Forward Leakage Current | ≤2mA |
| Dielectric Withstanding Voltage | ≥2500VAC |
| Insulation Resistance | ≤1000MΩ/500VDC |
| Switching Time | ≤10ms |
| Operating Temperature | -20~70℃ |
| Load Current Safety Factor | Resistive load: 40-50%, Inductive load: 20-30% |
