The volume is very small, which is half of the ordinary trough photoelectric sensor
Adopt four-wire system, each sensor comes with normal open and normal close function
Can be used to detect the rotation speed of the wheel
Available in a variety of sizes
Strong anti-interference performance
Good stability
| Model Number | HF-SOR202P |
|---|---|
| Material | Plastic |
| Feature | Conductor |
| IP Rating | IP54 |
| Certification | ISO |
| Customized | Customized |
| Name | Photoelectric Sensor |
| Power Supply | 12-24VDC |
| Output | NPN or PNP |
| Case | Plastic |
| Warranty | 18 Months |
| Transport Package | White Box |
| Specification | 25g |
| Trademark | Yaxike |
| Origin | China |
| Model Number | HF-SOR202P |
|---|---|
| Detection Mode | Micro-channel type |
| Minimum Detector | Opaque object Φ 1.5*0.8mm |
| Standard Test Substance | Opaque object Φ 1.5*0.8mm above |
| Sensitivity Regulation | There is no |
| Illuminant | 940nm red modulated light |
| Hysteresis | There is no |
| Operating Voltage | 5~24VDC±10%(SPV)/5VDC(SPS)/12~24VDC(SPS) |
| Current Consumption | ＜15MA |
| Load Current | 100MA |
| Leakage Current | ＜0.01mA No Load |
| Residual Voltage | <1.5VDC(load current 100mA, wire 2 meters) |
| Repeatability | ＜1% Detection distance |
| Response Frequency | 1000Hz |
| Power Reverse Protection | Yes |
| Output Short-Circuit Protection | Yes |

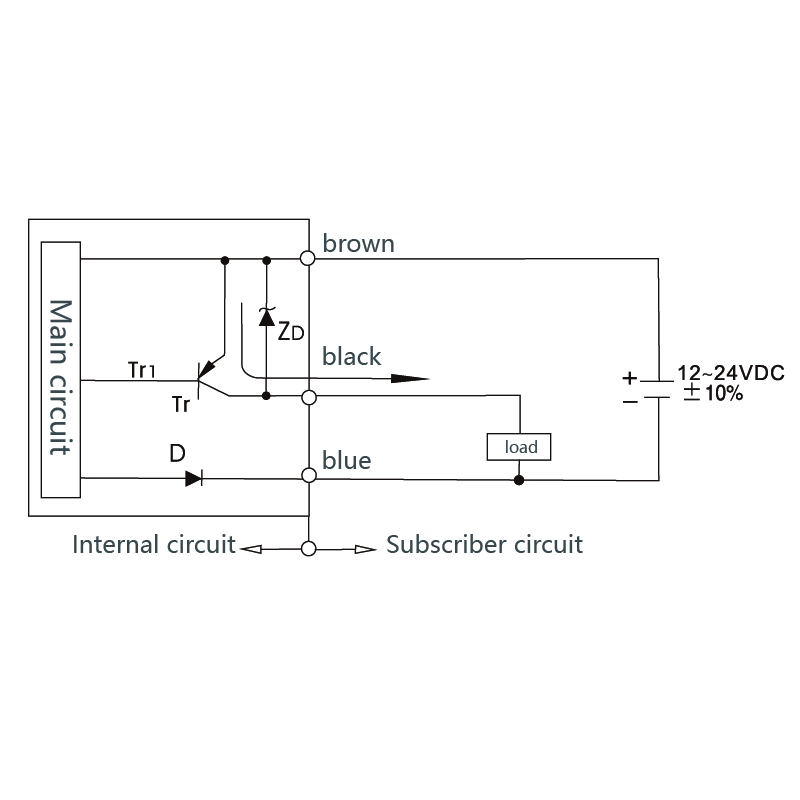

| Output Mode | NPN.NO,NC(SPV)/PNP.NO.NC(SPV)/NPN.NO/NPN.NC(SPS)/PNP.NO/PNP.NC(SPS) |
| Reaction Time | 0.5ms |
| Isolation Resistance | >50MΩ (between the charging part and the housing) |
| Insulation Withstand Voltage | 1000VDC 50~60Hz 1min (between the charging part and the housing) |
| Ambient Temperature | -10~50°C (no frost or ice) |
| Ambient Humidity | 35~85% RH relative humidity |
| Ambient Illumination Meter | Daylight: less than 3,000LX, Light: less than 2000LX |
| Storage Temperature | -20~60°C (no frost, ice) |
| Storage Humidity | 35~95% RH relative humidity |
| Class of Protection | IP54 |
| Connection Mode | Φ2.8*2M/3-wires/Φ2.8 lead 150mm with M8 connector |
| Shell Material | PC+PVC |
| Net Weight | Approx. 25g/28g/29g/32g |
