Variable dimming type that is not affected by external light interference
5mm slot width 6 shapes, suitable for various installation occasions, marking detection
Various applications such as liquid level detection
The wire can be lengthened arbitrarily
Designed products can be waterproof, oil, dust and other functions
Customizable waterproof products
| Model Number | HF-SOT306PR |
|---|---|
| Material | Plastic |
| Feature | Conductor |
| IP Rating | IP54 |
| Certification | ISO |
| Customized | Customized |
| Name | Photoelectric Sensor |
| Power Supply | 12-24VDC |
| Output | NPN |
| Case | Plastic |
| Warranty | 18 Months |
| Transport Package | White Box |
| Specification | 23g |
| Trademark | Yakexi |
| Origin | China |
| Detection Mode | Relative form |
|---|---|
| Model Number | HF-SOT306PR |
| Detection Distance | 5mm |
| Minimum Detector | Opaque object Φ 1.5*0.8mm |
| Standard Test Substance | Opaque object Φ 1.5*0.8mm above |
| Sensitivity Regulation | There is no |
| Illuminant | 940nm red modulated light |
| Hysteresis | There is no |
| Repeatability | 2% Detection distance |
| Operating Voltage | 5~24VDC+10% pulse (P-P) less than 10% |
| Current Consumption | ＜15MA |
| Load Current | 100MA |
| Leakage Current | ＜0.01mA No Load |
| Residual Voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Response Frequency | 1K Hz |
| Power Reverse Protection | There are |
| Output Short-circuit Protection | There are (Thermal protection) |

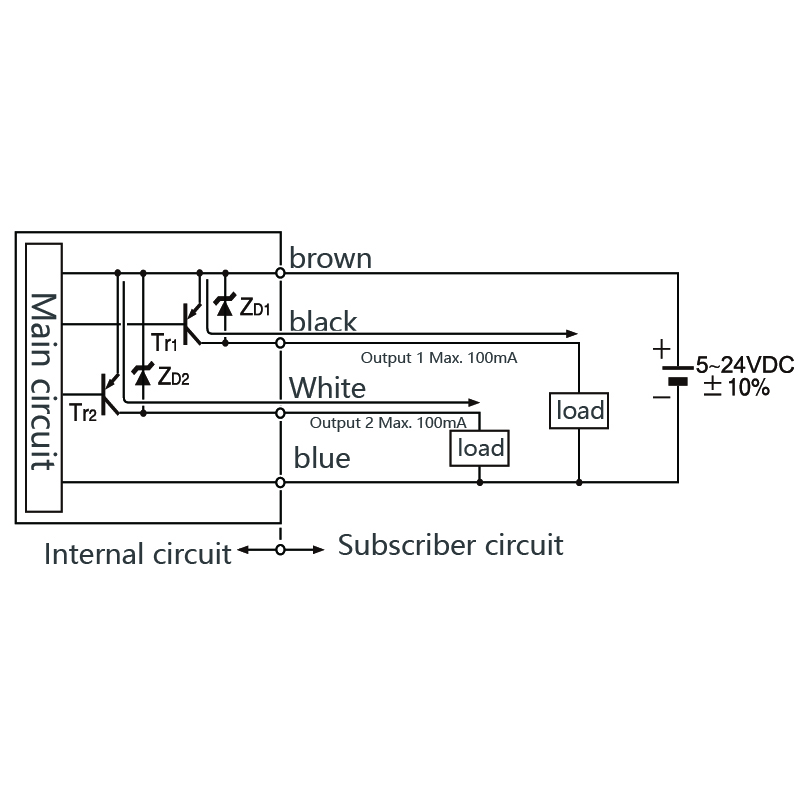

| Output Mode | NPN.NO.NC/PNP.NO.NC |
| Reaction Time | 0.5ms |
| Isolation Resistance | >20MΩ (between the charging part and the housing) |
| Insulation Withstand Voltage | 1000VDC 50~60Hz 1min (between the charging part and the housing) |
| Ambient Temperature | -10~50°C (no frost or ice) |
| Ambient Humidity | 35~85% HR relative humidity |
| Ambient Illumination Meter | Daylight: less than 3,000LX; Light: less than 2,000LX |
| Storage Temperature | -20~60°C (no frost or ice) |
| Storage Humidity | 35~95% HR relative humidity |
| Class of Protection | IP54 |
| Connection Mode | Φ2.8*2m/4-wires/Φ2.8 lead 150mm with M8 connector |
| Shell Material | PC+PVC |
| Net Weight | Approx. 27g/30g/35g |
