HF.CGQ-SR-304NA-W

Product Advantages

1:Highly integrated product functions and applications in a single chip, realizing higher consistency.

2:Rich product line, 12 kinds of appearance optional, slot width from 5mm to 120mm optional

3:Strong anti-jamming performance and good stability.

4:Clear high-brightness LED indicator, ultra-wide viewing angle design.

Features

1:Newly developed products, ultra-high cost-effective

2:Advanced technology, excellent performance

3: Slot depth of 6.5mm, effectively prevent the detected object impact on the bottom of the slot

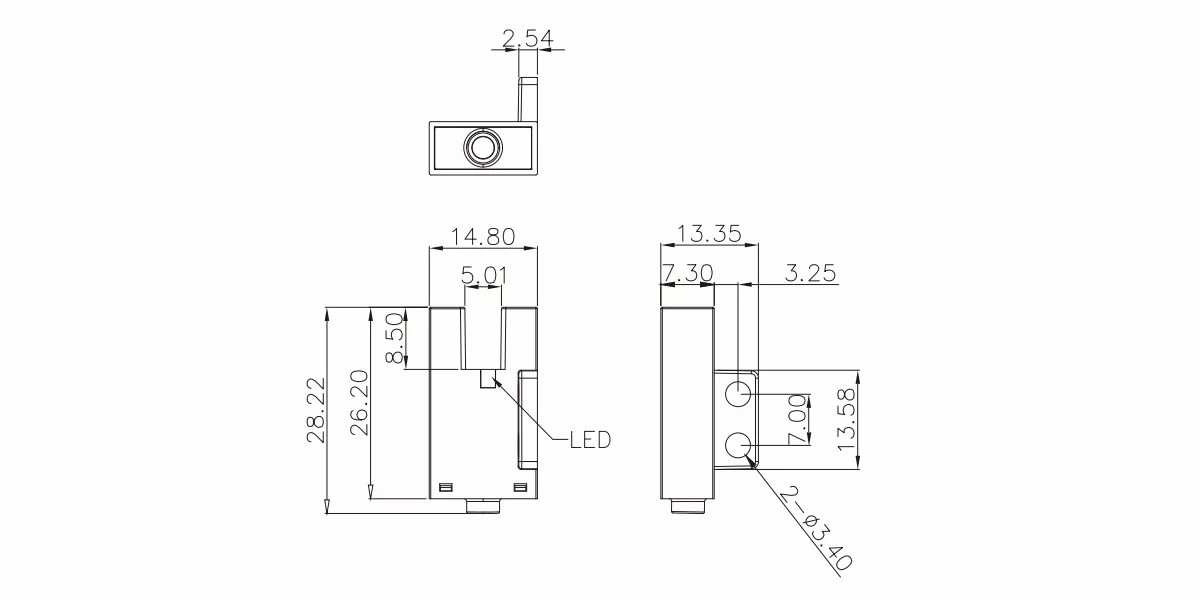

Product Size

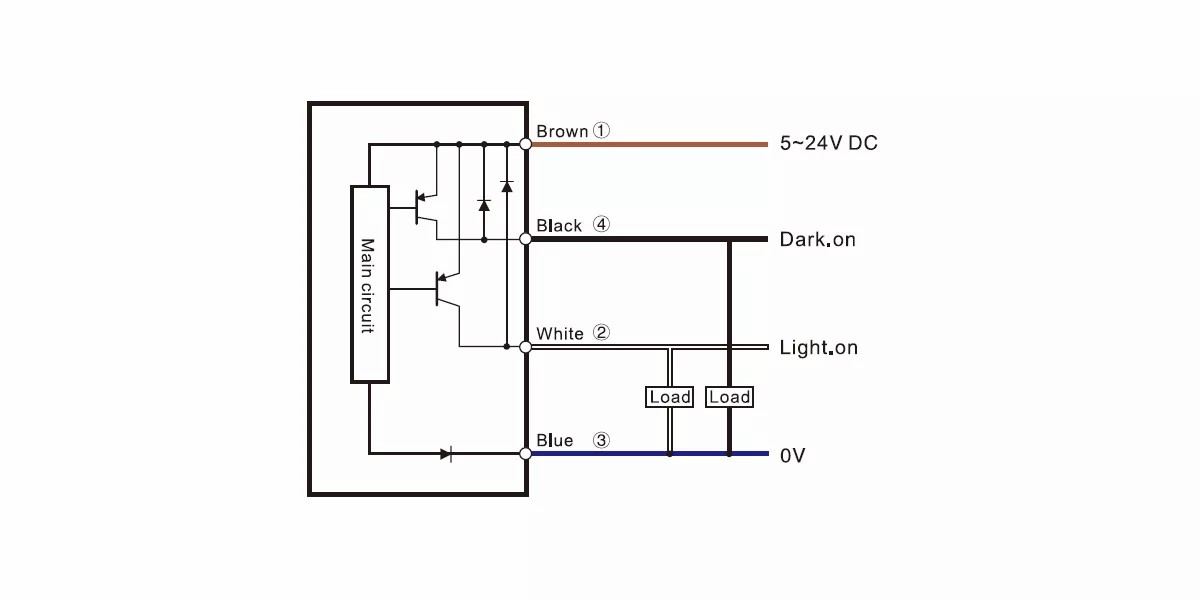

Product Circuit

Product Info

Model NO. SR-304NA-W
Material Plastic
Feature Corrosion Resistant
IP Rating IP50
Certification CE
Customized Customized
Model Sr-304na-W
Detection Distance 5mm
Output Mode NPN Open Collector
Light Source Infrared LED (940nm)
Working Voltage 5~24V DC
Connection Method 2m 4 Core Cable
Transport Package a Pieces /Box
Specification 2M
Trademark AkuSense
Origin Guangdong, China
HS Code 9031499090
Production Capacity 50000 pieces/Year

Technical Specifications

Model NO. SR-304NA-W
Type R Type
Detection Distance 5mm
Repeatability 0.03mm or less
Output Mode NPN open collector
Switch Mode L.on (light entry action) / D.on (shading action) can be switched
Indicator The light is off when an object is detected
Response Frequency 3KHz
Response Time ≤0.3ms
Light Source Infrared LED (940nm)
Working Voltage 5~24V DC
Residual Voltage 1.5V or less (load current 100mA, wire length 2m)
Current Consumption <20mA
Circuit Protection Surge protection, reverse polarity protection
Ambient Illuminance Incandescent lamp ≤1000Lux
Ambient Temperature Working: -25oC~+55oC, Storing: -30oC~+80oC, no freezing
Ambient Humidity Working: 5%~95%RH, Storing: 5%~95%RH, no freezing
Pressure Resistance AC, 1000V for 1 min, between all power link terminals and housing
Anti-Vibration 10~55Hz, amplitude 1.5mm, 2 hours each in X, Y, Z direction
Insulation Resistance Between all power connection terminals and housing, 20M (based on 250V DC), IP50
Protection Degree PC
Connection Method 2M 4 core cable
