Fast Response and Long Detection Range:Reaction time as fast as 50µs, with a detection range of up to 20 meters.
Outstanding Performance:Excellent anti-interference capability, stable operation in dusty and humid environments.
Energy-Saving and Flexible:Supports energy-saving mode and offers a variety of fiber optic tube options to meet diverse needs.
Adjustable Functions:Customizable delay time and display direction to accommodate various installation requirements.
High Adaptability Design:Designed for complex environments, delivering reliable performance and flexible configuration.
| Output | White Light |
|---|---|
| Model | HSF-403WHN |
| Diffuse Detection Distance | 400MM |
| Through-beam Detection Distance | 1000MM |
| Operating Voltage | 12~24VDC±10% pulsation (p-p) less than 10% |

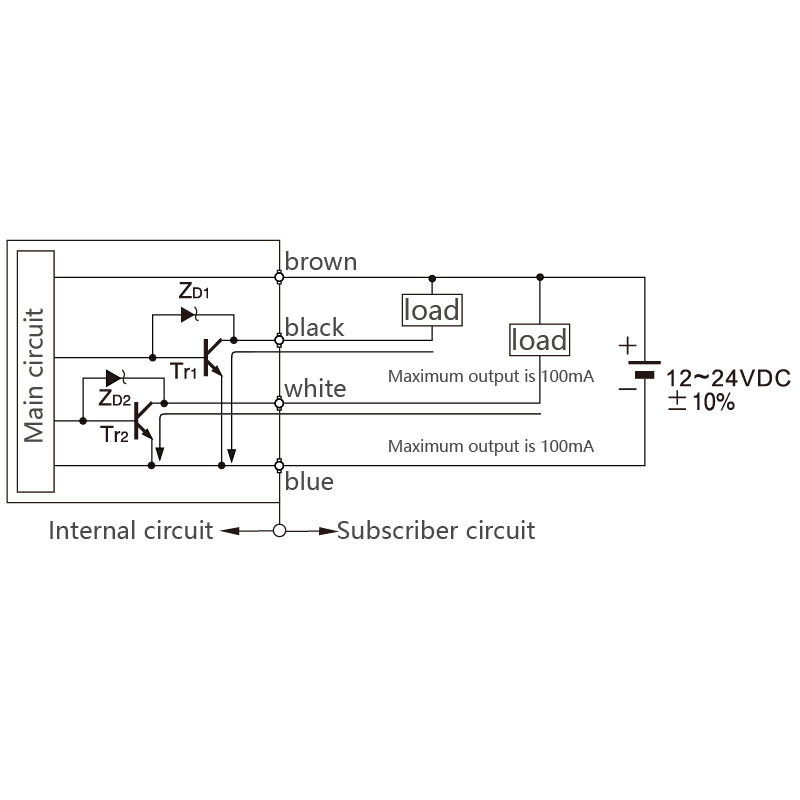

| Output Mode | NPN.NO.NC |
| Connection Method | Φ4*2M/3-wires Φ4*2M/4-wires |
| Housing Material | PC+POM Steel charge |
| Net Weight | 148g |
| Trademark | Yakexi |
| brand | Hongfei |
| Origin | China |
| Output | White Light |
|---|---|
| Model | HSF-403WHN |
| Diffuse Detection Distance | 400MM |
| Through-beam Detection Distance | 1000MM |
| Operating Voltage | 12~24VDC±10% pulsation (p-p) less than 10% |
| Current Consumption | <40mA/24V |
| Load Current | 100MA |
| Leakage Current | <0.01MA NO load |
| Residual Voltage | <1.5VDC |
| Four-digit Dual Display | Set value: green Actual value: red |
| Indicator Light | Output indicator: red |
| Reverse Polarity Protection | There are |
| Output Short Circuit Protection | There are |
| Output Mode | NPN.NO.NC |
| Response Time | 100us,300us,1ms,2ms |
| Delay Power | About 5ms,50ms,500ms,5s and no delay output, five kinds of delay can be set by pressing the button |
| solation Resistancel | >20MΩ(between the charging part and the housing) |
| Insulation Withstand Voltage | 1000VDC50-60HZ1min(between the charging part and the housing) |
| Ambient Temperature | -10℃~50℃(no frost or ice) |
| Ambient Humidity | 30~85%HR relative humidity |
| Storage Temperature | -20~70℃(no frost or ice) |
| Storage Humidity | 30~95%HR relative humidity |
| Protection Rating | IP54 |
| Connection Method | Φ4*2M/3-wires Φ4*2M/4-wires |
| Housing Material | PC+POM Steel charge |
| Net Weight | 148g |
