HF.CGQ-PG1-N

Product Advantages

1,Optical fiber amplifiers operated with automatic light compensation technology to effectively guarantee the stability of detection.

2,Full range of optical fiber components can work as perfect replacement forpopular models in the market.

3,Customization is available according to the users' on-site applications.

4,Abundant inventory,quick response and fast delivery.

Features

1,Economical and practical dual digital display fiber optic sensor

2,With light quantity automatic compensation technology, 4-channel anti-light interference

3,Small strain, dual outputs can be selected

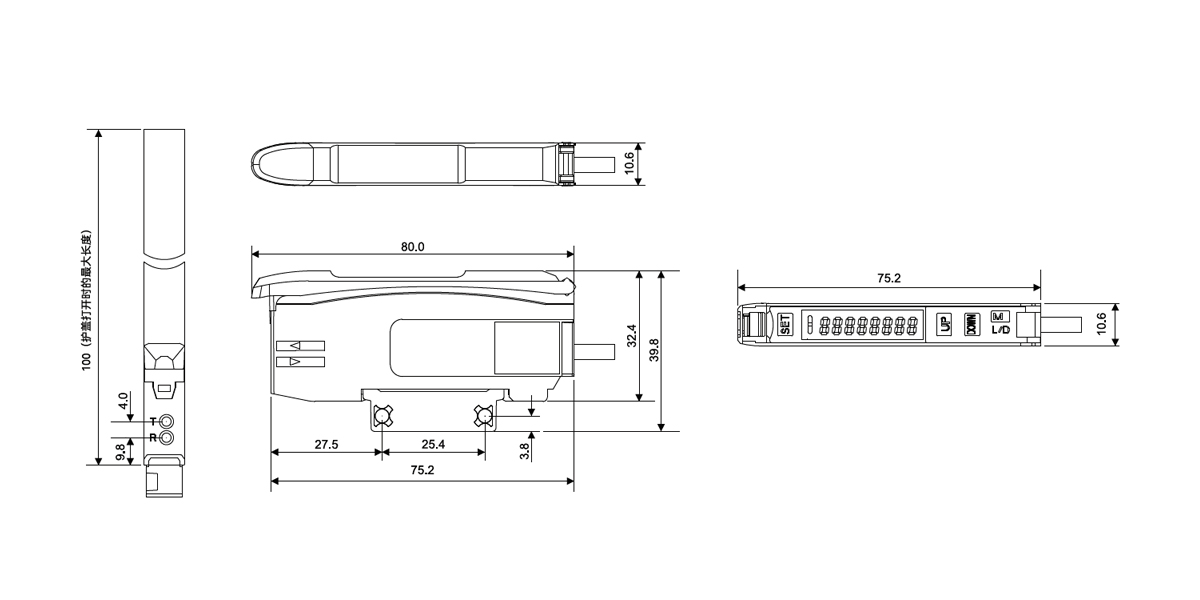

Product Size

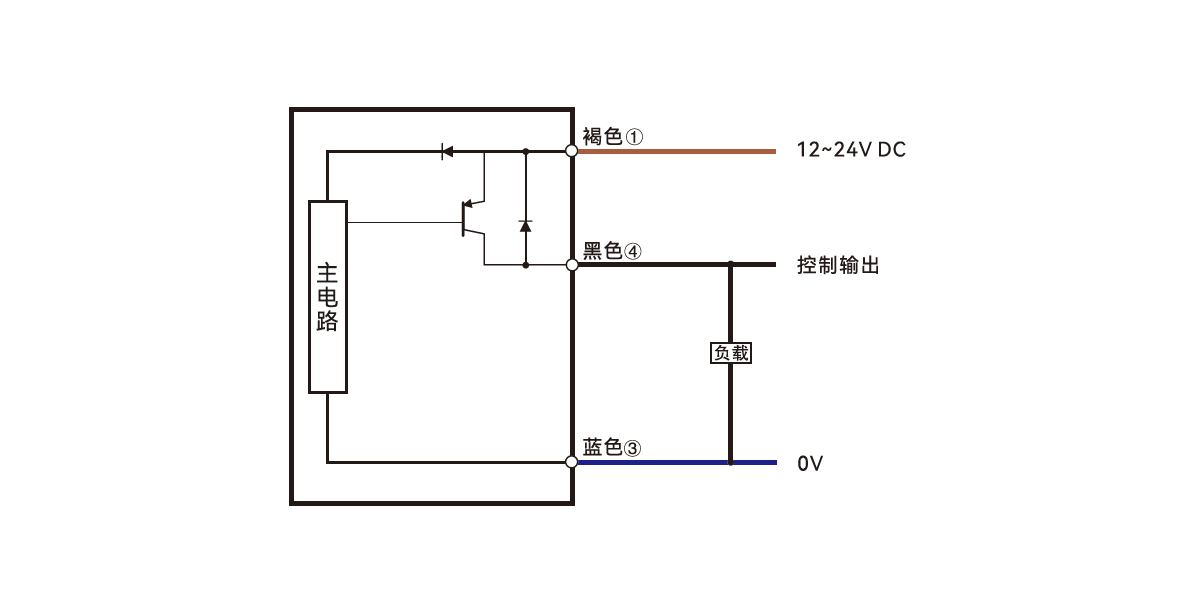

Product Circuit

Product Info

Model NO. PG1-N
Production Process Injection
Functional Type Functional
Material Plastic
Accuracy Grade 0.5G
IP Rating IP56
Certification CE
Customized Customized
Model Pg1-N
Light Source Red, 4-Element LED
Power Supply 12~24V DC ?I10%
Output Control One Output Port
Output NPN Collector Open Circuit, Maximum 100mA, Residual
Ambient Humidity -10oC~+55oC, No Freezing
Transport Package a Pieces /Box
Specification 2m 4-core cable
Trademark AkuSense
Origin Guangdong, China
HS Code 85414020
Production Capacity 60000 pieces/Year

Technical Specifications

Model PG1-N
Output Control One output port
Light Source Red, 4-element LED
Response Time SHP: 13, FINE: 30, SUPR: 100, MEGA: 200
Output NPN collector open circuit, maximum 100mA, residual voltage: 1V
Indicator Operation indicators: red LEDs, dual digital monitors: dual 7-digit display, threshold value (4-digit green LED body indicator) lights up with the current value (4-digit red LED body indicator). Current value range: 0-9999
Ambient Humidity -10oC~+55oC, no freezing
Output Selection LIGHT-ON/DARK-ON (short press MODE and use UP DOWN to select)
Detection Method Light intensity (area detection possible, automatic sensitivity tracking available)
Delay Function 1ms~9999ms
Power Supply 12~24V DC I10%
Ambient Illumination Sunlight ≤30,000 Lux, incandescent lamp ≤20,000 Lux
Power Consumption Standard mode: Max 300mW
Anti-Vibration 10~55Hz, 1.5mm double amplitude, two hours each on the X, Y, and Z axes
Production Process Injection
Functional Type Functional
Material Plastic
Accuracy Grade 0.5G
IP Rating IP56
Certification CE
Customized Customized
Transport Package a Pieces /Box
Specification 2m 4-core cable
Trademark AkuSense
Origin Guangdong, China
HS Code 85414020
Production Capacity 60000 pieces/Year
