HF.CGQ-ESC-18N

Product Advantages

Features

Product Size

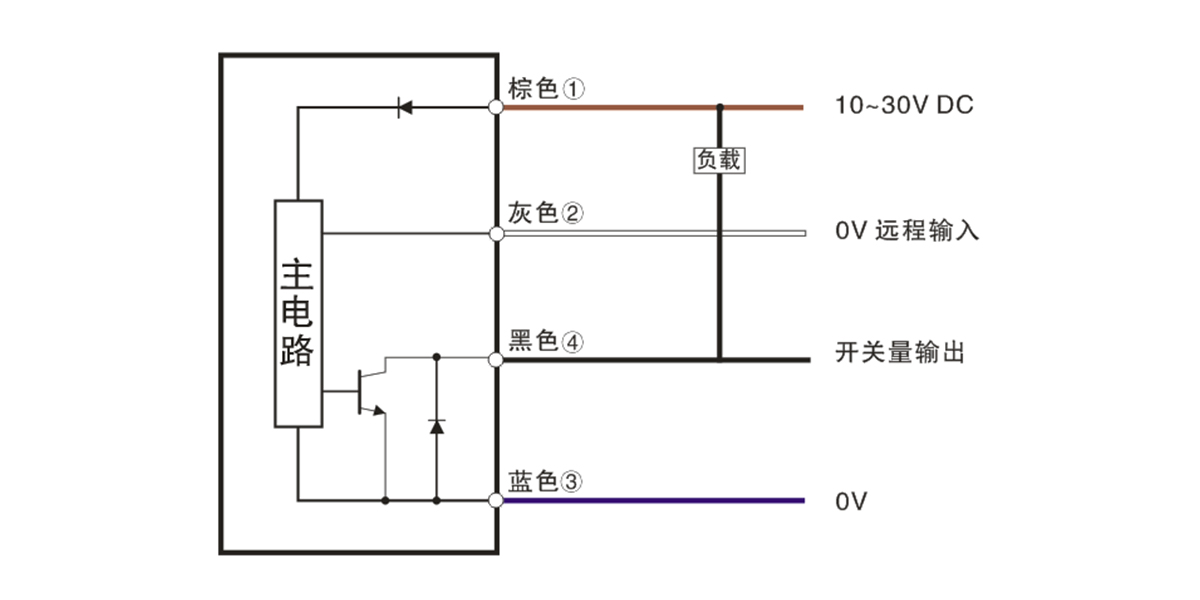

Product Circuit

Product Info

Model NO. ESC-18N
Material Plastic
Feature Low Temperature Resistant
IP Rating IP67
Certification CE
Customized Customized
Model ESC-18n
Sensing Type Color Detection Photoelectric Sensor
Sensing Distance 18?I2mm
Light Source RGB 3 Color Light Source
No-Load Supply Current 35mA (12V), 25mA (24V)
Output Type NPN/PNP Open-Collector ?P100mA/30V DC
Usage Position Sensor
Transport Package a Pieces /Box
Specification 2M/3 core cable 4mm diameter
Trademark AkuSense
Origin Guangdong, China
HS Code 9031499090
Production Capacity 50000 pieces/Year

Technical Specifications

Model ESC-18N
Detection Method Diffuse Reflection
Detection Distance 18I2mm
Spot Size 6mm/18mm
Output Mode NPN Open Collector, ≤100mA (30V DC)
Switch Mode L.on(light entry action)/D.on(shading action) can be switched
Indicator Output indicator: Orange; Power LED: Green
Digital Screen 7-segment, 3-digit display (red and green LEDs)
Response Time Color contrast mode: H1/0.25ms, H2/0.5ms, L/1.2ms; color mode: H1/0.8ms, H2/1.6ms, L/4ms
Working Voltage 10~30V DC I10%
Current Consumption ≤40mA
Load Current ≤100mA
Ambient Illuminance Sunlight ≤10,000 Lux, incandescent lamp ≤3,000 Lux
Ambient Temperature -25oC~+55oC, no freezing
Ambient Humidity 35%~85%RH, no condensation
Protection Degree IP67
Light Source RGB Tricolor light Source
Delay Function OFF delay/ON delay/single pulse delay (0~990ms unit: 10ms; 1~10s unit: 1s)
Insulation Resistance 20M/500V DC
Impact Resistance 50G (500m/s2), XYZ
Connection Method 2M/4 Core Cable
Material Housing: ABS, Lens: PMMA
Accessory Brackets, Screws
Transport Package a Pieces /Box
Specification Stainless Steel
Trademark AkuSense
Origin Guangdong, China
HS Code 9031499090
Production Capacity 50000 pieces/Year
