The blue line is made from oil-resistant PVC material, ensuring a high level of protection.
Standard Soft Wire:Uniformly supplied with soft wire for enhanced flexibility.
The blue line is made from oil-resistant PVC material, ensuring a high level of protection.
Standard Soft Wire:Uniformly supplied with soft wire for enhanced flexibility.
| Model | HSF-M12D |
|---|---|
| Standard detection object | Φ4.0*10mm (N35 magnet) |
| Induction distance | 10mm+20% |
| Working voltage | 5~30VDC+10% pulse (P-P) less than 10% |
| Consumption current | There is no |
| Load current | ≤100mA |
| Leakage current | There is no |
| Residual voltage | ≤2.5V DC (load current 100mA, wire 2 meters) |
| Indicator light | Red LED |
| Maximum electrical capacity | ≤3.5W |

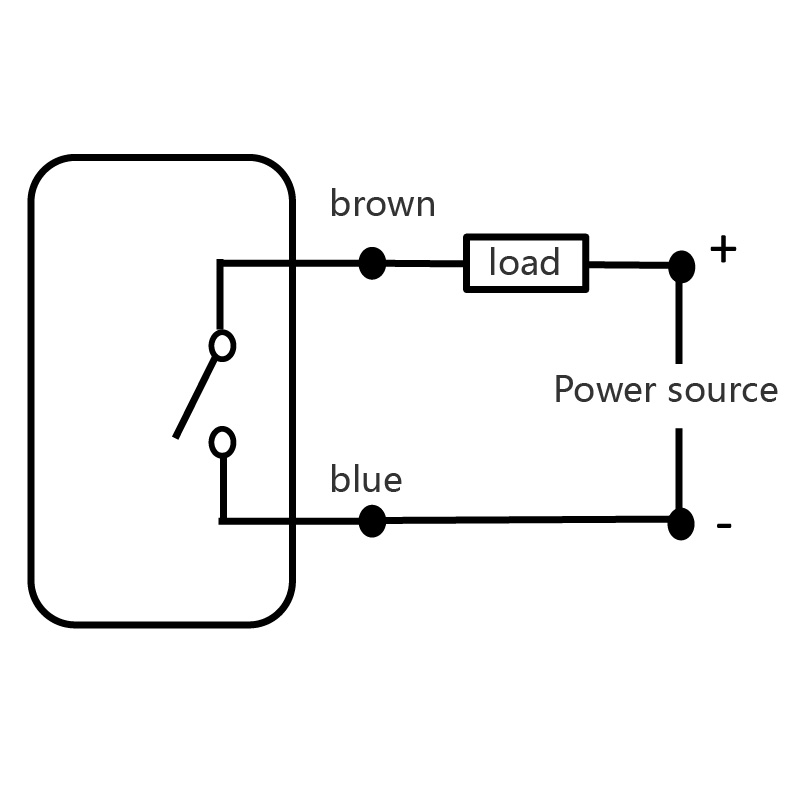

| Output mode | Contact coil normally open type |
| Connection method | Φ4.0 two-core shielded cable 150mm with M8 connector |
| Protection level | IP67 |
| Model | HSF-M12D |
|---|---|
| Standard detection object | Φ4.0*10mm (N35 magnet) |
| Induction distance | 10mm+20% |
| Working voltage | 5~30VDC+10% pulse (P-P) less than 10% |
| Consumption current | There is no |
| Load current | ≤100mA |
| Leakage current | There is no |
| Residual voltage | ≤2.5V DC (load current 100mA, wire 2 meters) |
| Indicator light | Red LED |
| Maximum electrical capacity | ≤3.5W |
| Output mode | Contact coil normally open type |
| Connection method | Φ4.0 two-core shielded cable 150mm with M8 connector |
| Protection level | IP67 |
| Ambient temperature | -10~70℃ no frost, freezing (storage temperature -25~70℃ no frost, freezing) |
| Maximum switch switching frequency | 1000Hz |
| Impact resistance | 30G |
| Vibration resistance | 9G |

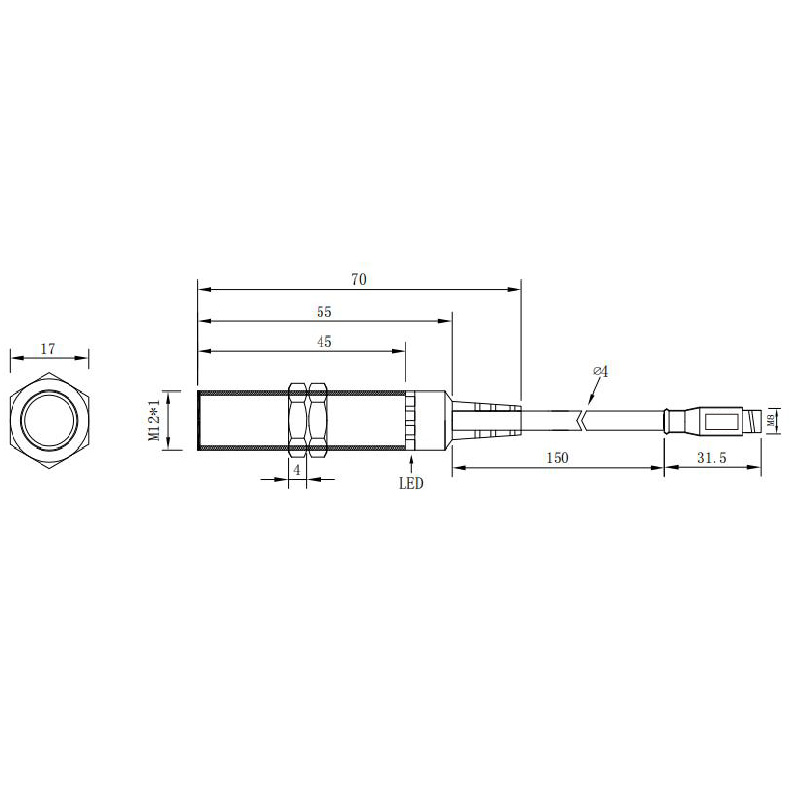

| External dimensions | M12*45mm |
| Shell material | SUS304+PVC |
| Net weight | About 25g/55g |
