Compact Size: Small, about half the size of a fingertip, for space-saving installation.
High Durability: IP65 rating for dust and water resistance, built for tough environments.
Stable Monitoring: Fixed monitoring distance with strong interference resistance, no need for adjustment.
Small, robust design with IP65 protection and durable tail.
Fixed, stable monitoring distance for reliable performance.
| Detection Mode | Diffuse reflection type |
|---|---|
| Model Number | QCDIR-P10N |
| Detection Distance | 100mm |
| Standard Test Substance | 100*100mm white paper |
| Illuminant | 850nm Infrared modulated light |
| Hysteresis | <15% Detection distance |
| Operating Voltage | 12~24VDC +10% pulse (P-P) less than 10% |
| Load Current | 100mA |
| Repeatability | <5% Detection distance |
| Response Frequency | 300Hz |

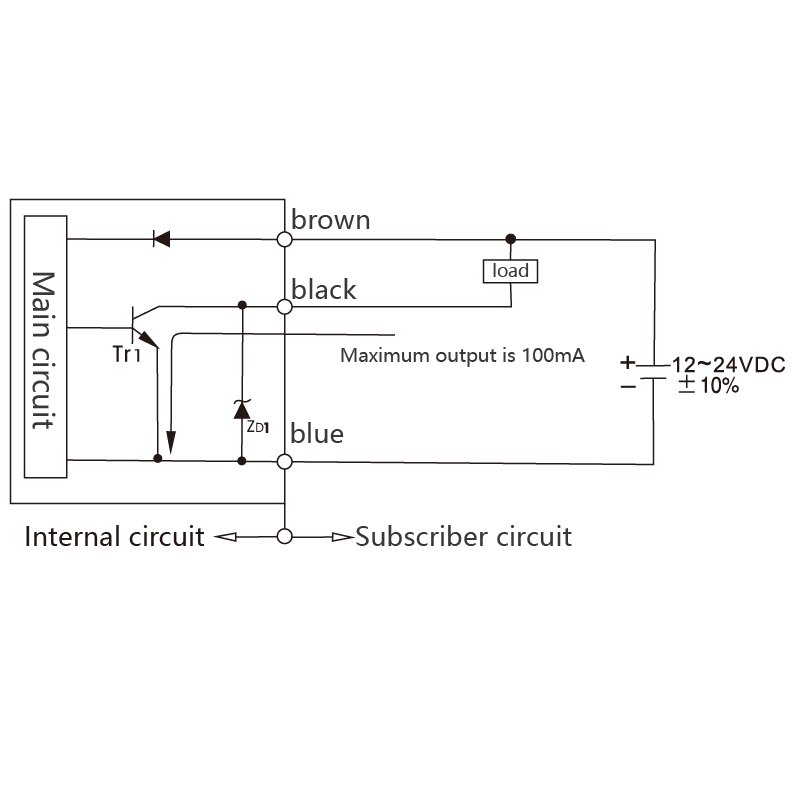

| Output Mode | NPN.NO/NPN.NC |
| Reaction Time | 1.0ms |
| Class of Protection | IP54 |
| Trademark | Yakexi |
| Brand | Hongfei |
| Origin | China |
| Detection Mode | Diffuse reflection type |
|---|---|
| Model Number | QCDIR-P10N |
| Detection Distance | 100mm |
| Minimum Detector | There is no |
| Standard Test Substance | 100*100mm white paper |
| Sensitivity Regulation | There are |
| Illuminant | 850nm Infrared modulated light |
| Hysteresis | <15% Detection distance |
| Operating Voltage | 12~24VDC +10% pulse (P-P) less than 10% |
| Current Consumption | <20mA |
| Load Current | 100mA |
| Leakage Current | <0.01mA (No Load) |
| Residual Voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Repeatability | <5% Detection distance |
| Response Frequency | 300Hz |
| Power Reverse Protection | There are |
| Output Short-Circuit Protection | There are |
| Output Mode | NPN.NO/NPN.NC |
| Reaction Time | 1.0ms |
| Isolation Resistance | >20MΩ (between the charging part and the housing) |
| Insulation Withstand Voltage | 1000VDC 50~60Hz 1min (between the charging part and the housing) |
| Ambient Temperature | -10~50°C (no frost or ice) |
| Ambient Humidity | 35~95% HR relative humidity |
| Ambient Illumination | Daylight: less than 2,000LX, Light: less than 1,000LX |
| Storage Temperature | -20~60°C (no frost or ice) |
| Storage Humidity | 35~95% HR relative humidity |
| Class of Protection | IP54 |

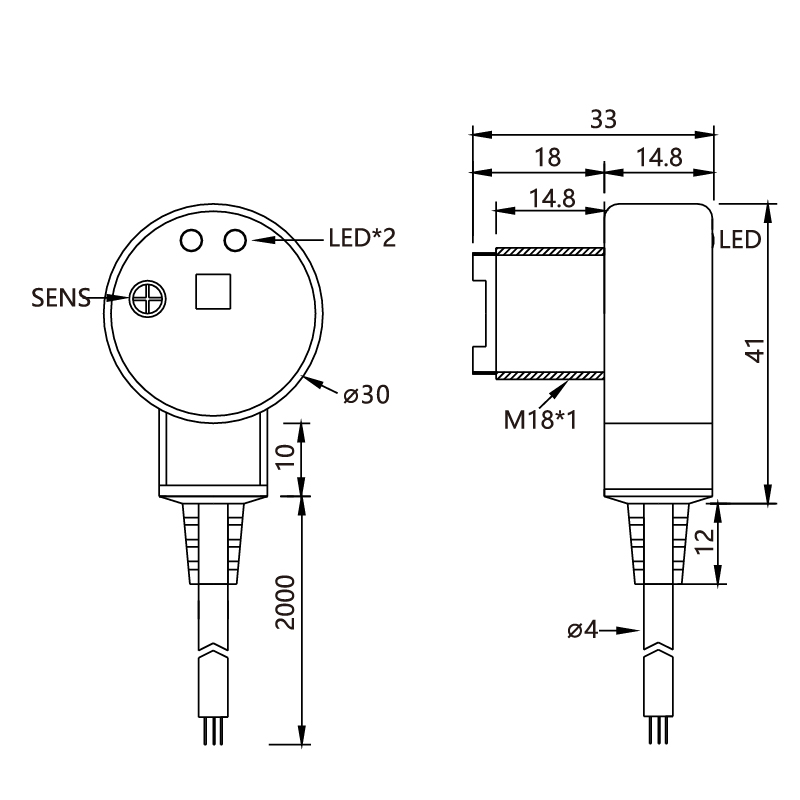

| Connection Mode | Φ4.0*2M/2-wires, Φ4.0*2M/3-wires, Φ4.0*2M/4-wires, Φ4.0 Lead 150mm with M8 connector |
| Shell Material | ABS+PC |
| Net Weight | Approx. 55g/56g/110g/110g |
