Superior Protection: IP66 rating for excellent dust and water resistance.
Global Compatibility: EN specification support with both NPN and PNP options, suitable for global markets.
Long-Distance Detection: Detects up to 10 meters, ideal for a variety of applications.
High sealing protection (IP66), global compatibility, and robust design.
Long detection range and versatile application, especially for logistics.
| Model Number | SQAIR-P500N |
|---|---|
| Detection Distance | ≥5m+10% |
| Illuminant | 850nm infrared modulated light |
| Operating Voltage | 12~24VDC +10% pulse (P-P) less than 10% |
| Load Current | 100mA |
| Repeatability | <1% Detection distance |
| Response Frequency | 500Hz |

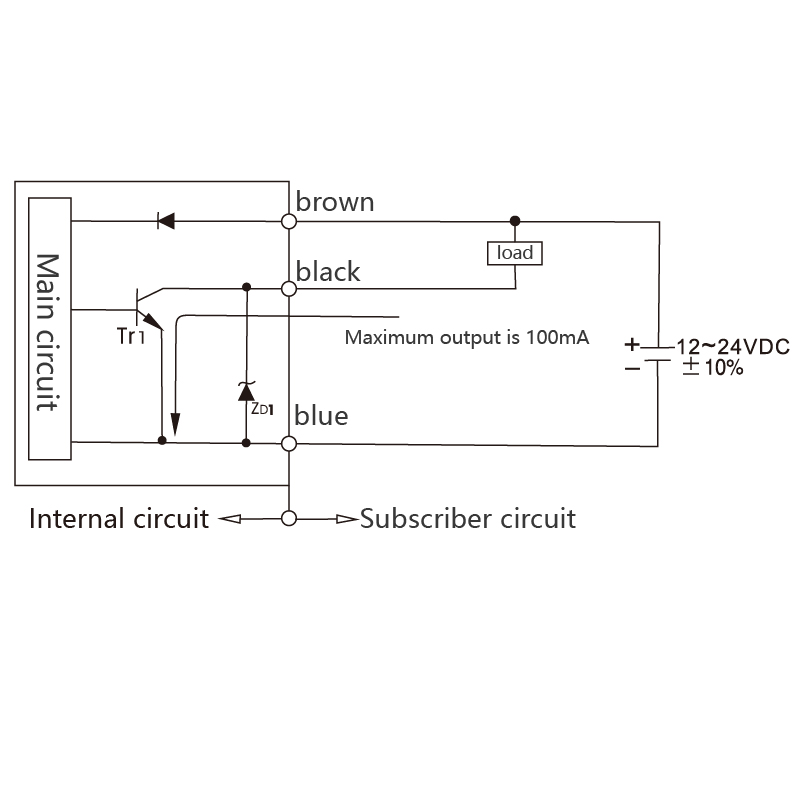

| Output Mode | NPN.NO / NPN |
| Reaction Time | 2.5ms |
| Class of Protection | IP65 |
| Trademark | Yakexi |
| Brand | Hongfei |
| Origin | China |
| Model Number | SQAIR-P500N-CC |
|---|---|
| Detection Distance | ≥5m+20% |
| Adjustable Range | Adjustable |
| Standard Test Substance | Opaque objectΦ3mm above |
| Illuminant | 850nm infrared modulated light |
| Operating Voltage | 12~24VDC +10% pulse (P-P) less than 10% |
| Current Consumption | <20mA |
| Load Current | 100mA |
| Leakage Current | <0.01mA No Load |
| Residual Voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Repeatability | <5% Detection distance |
| Response Frequency | 500Hz |
| Power Reverse Protection | There are |
| Output Short-Circuit Protection | There are |
| Output Mode | NPN.NO / NPN.NC |
| Reaction Time | 2.5ms |
| Isolation Resistance | >20MΩ (between the charging part and the housing) |
| Insulation Withstand Voltage | 1000VDC 50~60Hz 1min (between the charging part and the housing) |
| Ambient Temperature | -10~50°C (no frost or ice) |
| Ambient Humidity | 35~85% RH relative humidity |
| Ambient Illumination | Daylight: less than 2,000LX, Light: less than 2,000LX |

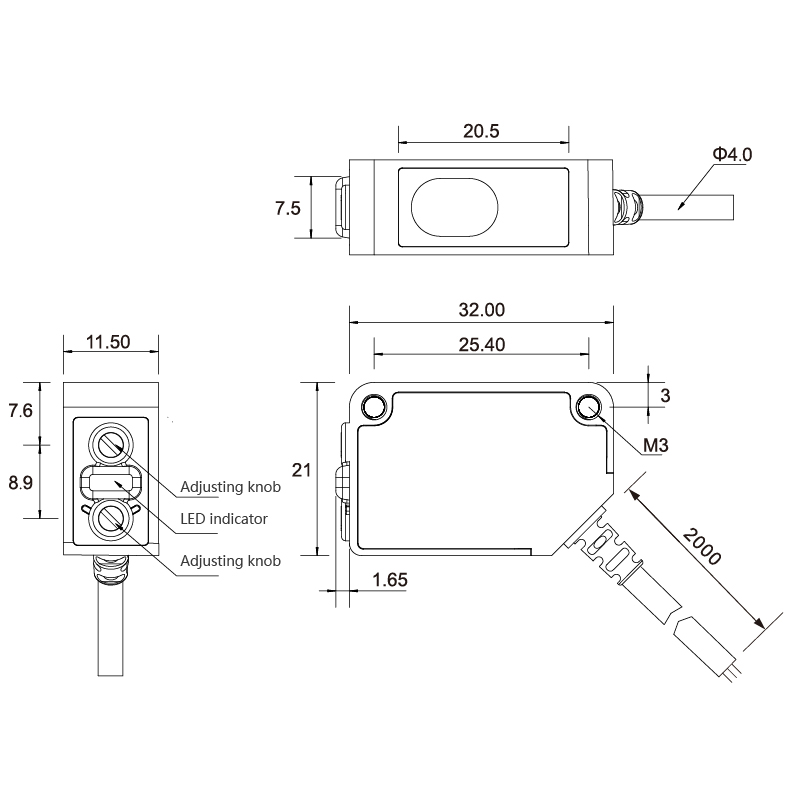

| External Dimensions | 20*11*31mm |
| Storage Humidity | 35~95% RH relative humidity |
| Class of Protection | IP65 |
| Connection Mode | Φ4.0*2M/3-wires, Φ4.0*2M/2-wires, Φ4.0 Lead 150mm with M12 connector |
| Shell Material | ABS+PC+PVC |
| Net Weight | Two are about 91 grams |
