SQLDIR-P100NNC

Product Advantages

Versatile Application: Designed for a wide range of applications.
Long-Distance Detection: Detects up to 20m with through-beam, 4m with lens reflection, and 1m with diffuse reflection.
Durable and Adjustable: Long lifespan, strong interference resistance, and adjustable light intensity.

Features

Configurable Functionality: Supports both normally open and normally closed settings.
Adjustable Brightness: Allows manual adjustment of light intensity for flexible use.Strong Interference Resistance: Ensures stable performance in environments with high electrical noise.

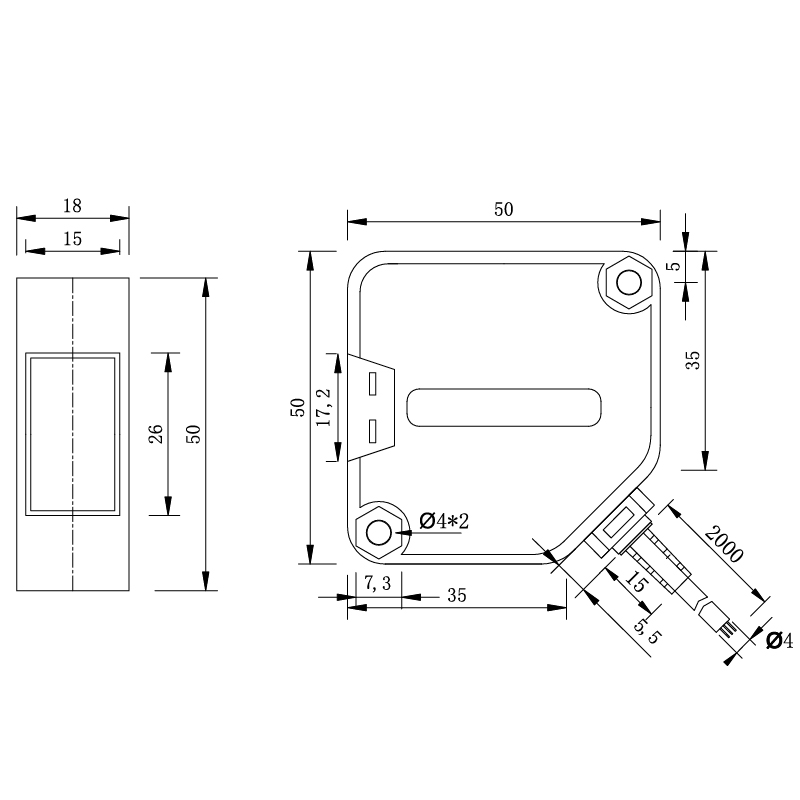

Product Size

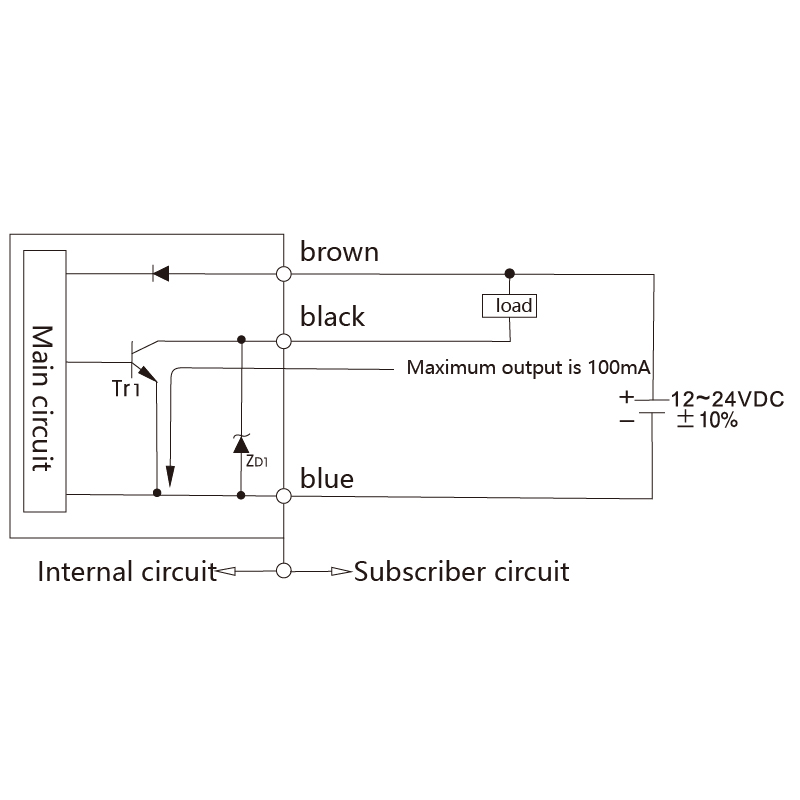

Product Circuit

Product Info

Model Number SQLDIR-P100NNC
Detection Distance 1m
Illuminant 850nm Infrared modulated light
Operating Voltage 12~24VDC +10% pulse (P-P) less than 10%
Load Current 100mA
Repeatability <2% Detection distance
Response Frequency 200Hz
Output Mode NPN.NO.NC
Reaction Time 1.0ms
Class of Protection IP65
Trademark Yakexi
Brand Hongfei
Origin China

Technical Specifications

Detection Mode Diffuse reflection type
Model Number SQLDIR-P100NNC
Detection Distance 1m
Minimum Detector There is no
Standard Test Substance 100*100mm white paper
Illuminant 850nm Infrared modulated light
Operating Voltage 12~24VDC +10% pulse (P-P) less than 10%
Current Consumption <20mA
Load Current 100mA
Leakage Current <0.01mA No Load
Residual Voltage <1.5VDC (load current 100mA, wire 2 meters)
Repeatability <2% Detection distance
Response Frequency 400Hz
Power Reverse Protection There are
Output Short-Circuit Protection There are
Output Mode NPN.NO.NC
Reaction Time 1.0ms
Isolation Resistance >20MΩ (between the charging part and the housing)
Insulation Withstand Voltage 1000VDC 50~60Hz 1min (between the charging part and the housing)
Ambient Temperature -10~50°C (no frost or ice)
Ambient Humidity 35~85% RH relative humidity
Ambient Illumination Meter Daylight: less than 2,000LX, Light: less than 1,000LX
Storage Temperature -20~60°C (no frost, ice)
Storage Humidity 35~95% RH relative humidity
Class of Protection IP65
Connection Mode Φ4.0*2M/2-wires, Φ4.0*2M/3-wires, Φ4.0*2M/4-wires, Φ4.0 Lead 150mm with M8 connector
Shell Material ABS+PC+PVC
Net Weight Approx. 76g/78g/78.5g/190g
