BGD-G05N

Product Advantages

Spot Size at Close Range: Light spot size is approximately 6mm within a distance of 100mm.
Spot Size at Extended Range: Light spot size is approximately 9mm within a distance of 300mm.

Features

Spot Size at Close Range: Light spot size is approximately 6mm within a distance of 100mm.
Spot Size at Extended Range: Light spot size is approximately 9mm within a distance of 300mm.

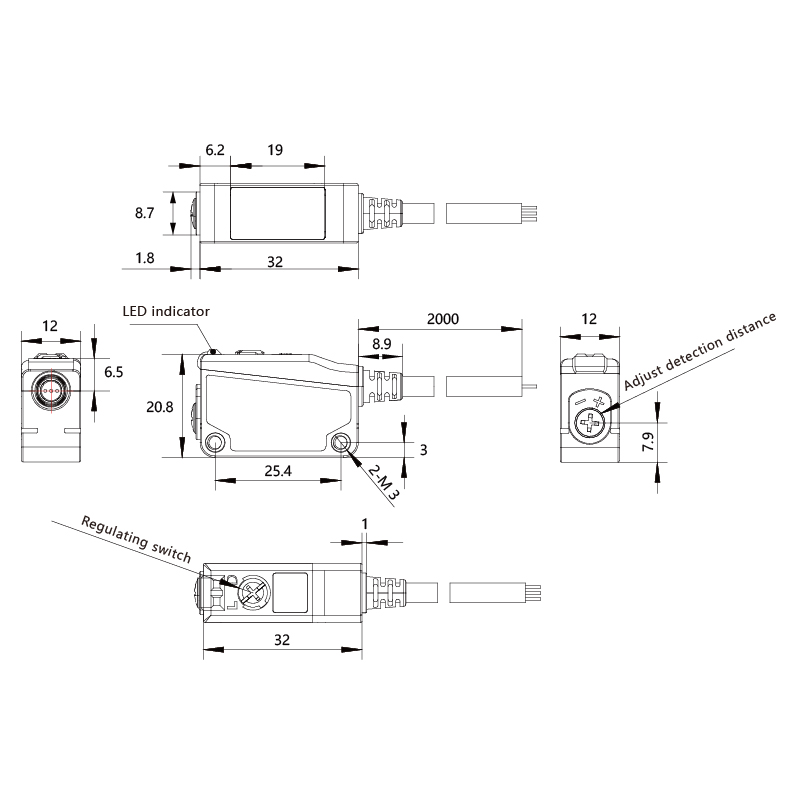

Product Size

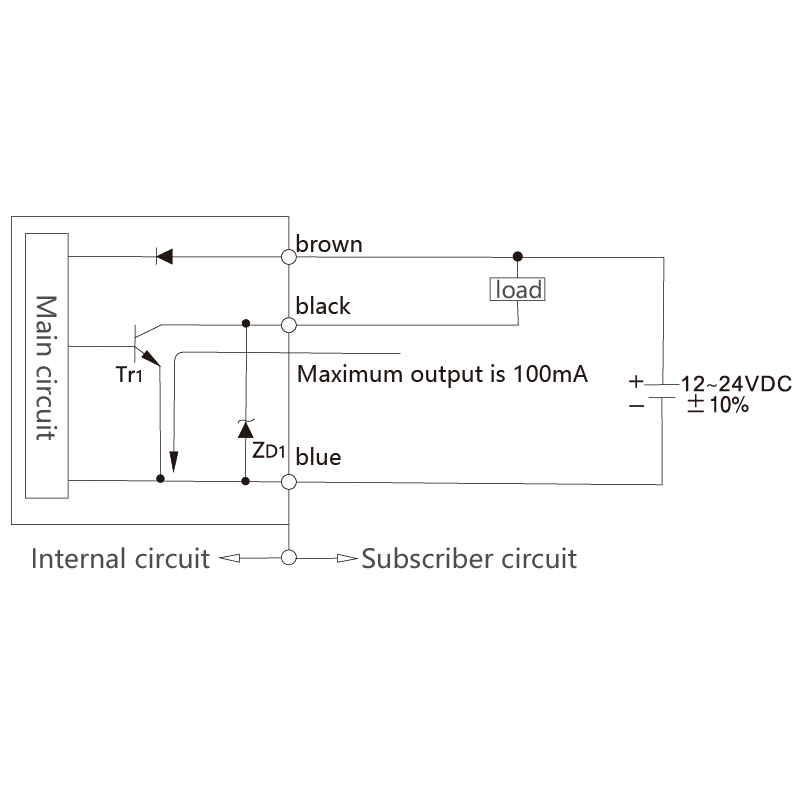

Product Circuit

Product Info

Detection mode Background suppression diffuse reflection type
Model number BGD-G05N
Detection distance 0~100mm+20% (white card) / 3~95mm+20% (black card)
Detection blind area White card 0mm / Black card 2mm / Black matte ≤5mm / Black light ≤7mm
Return gap <5% Detection distance
Adjustable range Minimum distance: <20mm, Maximum distance: >150mm (White cardstock)
Standard test substance 100*100mm Black cardstock / White cardboard
Illuminant 650nm red modulated light
Repeatability 2% Detection distance
Operating voltage 12~24VDC+10% pulse (P-P) less than 10%
Current consumption <30mA
Load current 100mA
Leakage current <0.01mA No Load
Residual voltage <1.5VDC (load current 100mA, wire 2 meters)
Response frequency 300Hz

Technical Specifications

Detection mode Background suppression diffuse reflection type
Model number BGD-G05N
Detection distance 0~100mm+20% (white card) / 3~95mm+20% (black card)
Detection blind area White card 0mm / Black card 2mm / Black matte ≤5mm / Black light ≤7mm
Return gap <5% Detection distance
Adjustable range Minimum distance: <20mm, Maximum distance: >150mm (White cardstock)
Standard test substance 100*100mm Black cardstock / White cardboard
Illuminant 650nm red modulated light
Repeatability 2% Detection distance
Operating voltage 12~24VDC+10% pulse (P-P) less than 10%
Current consumption <30mA
Load current 100mA
Leakage current <0.01mA No Load
Residual voltage <1.5VDC (load current 100mA, wire 2 meters)
Response frequency 300Hz
Reaction time 2ms
Power reverse protection There are
Output short-circuit protection 150mA overcurrent protection (thermal protection)
Output mode NPN.NO.OR.NC, PNP.NO OR.NC
Isolation resistance >250MΩ (between the charging part and the housing)
Insulation withstand voltage 1000VDC 50~60Hz 1 min (between the charging part and the housing)
Ambient temperature -10~50°C (no frost or ice)
Ambient humidity 35~85% HR relative humidity
Ambient illumination meter Daylight: <5000LX, Light: <2000LX
Storage temperature -20~60°C (no frost, ice)
Storage humidity 35~95% HR relative humidity
Class of protection IP65
Connection mode Φ4.0*2M/3-wires, Φ4.0*5M/3-wires, Connecting line
Shell material PBT+PC
Net weight Approx. 50g/120g
