Compact Design: Small-sized sensor for flexible installation, adaptable to complex environments.
High-Speed Response: Response time of less than 1ms ensures fast and efficient operation.
Accurate Detection: Background suppression enables reliable detection within a range of 0-120mm, reducing false positives.
High Contrast Sensitivity: Supports detection of targets with only 1% black-and-white contrast difference.
Photoelectric Background Suppression: Small spot size ensures effective filtering of background interference.
Precise Spot Size: Light spot size less than 1.5mm at 50mm and less than 2mm at 100mm.
| Model number | BGD-P05P |
|---|---|
| Detection mode | Background suppression diffuse reflection type |
| illuminant | 650nm red modulated light |
| Operating voltage | 12~24VDC+10% pulse (P-P) less than 10% |
| Current consumption | ＜30MA |
| Load current | 100MA |
| Leakage current | ＜0.01mA No Load |
| Residual voltage | <1.5VDC(load current 100mA, wire 2 meters) |
| Class of protection | IP65 |
| Item | Specification list |
|---|---|
| Model number | BGD-P05P |
| Detection mode | Background suppression diffuse reflection type |
| Detection distance | Black detector 5mm-100mm+20% |
| Detection blind area | <2mm(50mm) |
| Sensitivity regulation | adjustable |
| Standard test substance | 10*10cm standard test material |
| illuminant | 650nm red modulated light |
| Black and white error | Set less than 10% of the distance |
| Spot size | The spot size within 10cm is about 1mm |
| Operating voltage | 12~24VDC+10% pulse (P-P) less than 10% |
| Current consumption | ＜30MA |
| Load current | 100MA |
| Leakage current | ＜0.01mA No Load |
| Residual voltage | <1.5VDC(load current 100mA, wire 2 meters) |
| Reaction time | 2ms |
| Power reverse protection | There are |
| Output short-circuit protection | 150mA overcurrent protection (thermal protection) |

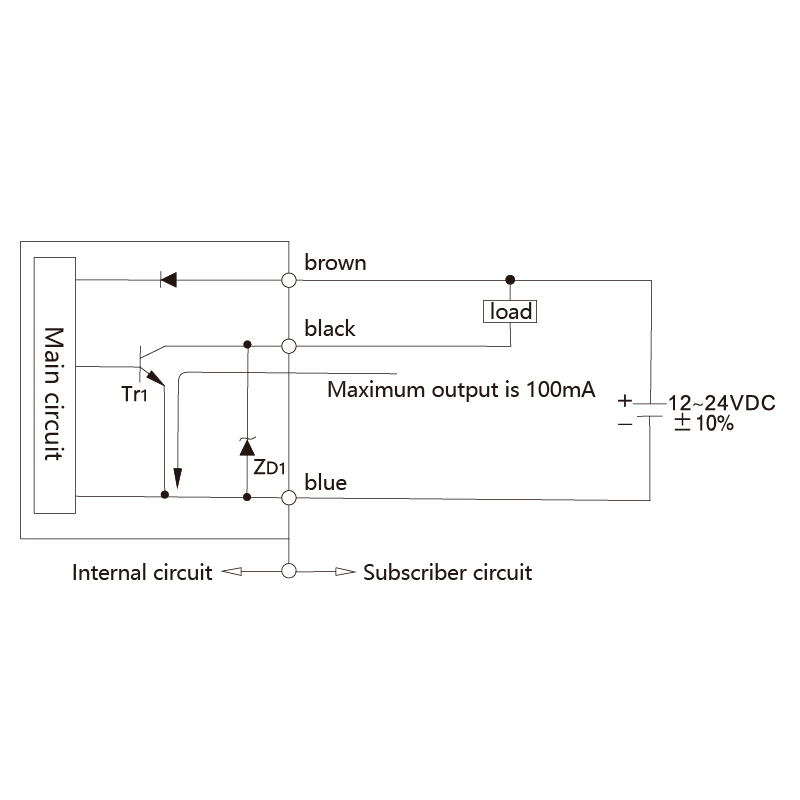

| Output mode | NPN.NO.NC |
| Connection mode | Φ4.0*2M/4-wires/Φ4.0*5M/4-wires Connecting line |
| Class of protection | IP65 |
| Ambient illumination meter | Daylight: less than 5,000LX Light: less than 2000LX |
| Ambient temperature | -10~50°C(no frost or ice) |
| Ambient humidity | 35~85% HR relative humidity |
| Isolation resistance | >20MΩ(between the charging part and the housing) |
| Insulation withstand voltage | 1000VDC 50~60Hz 1mih(between the charging part and the housing) |

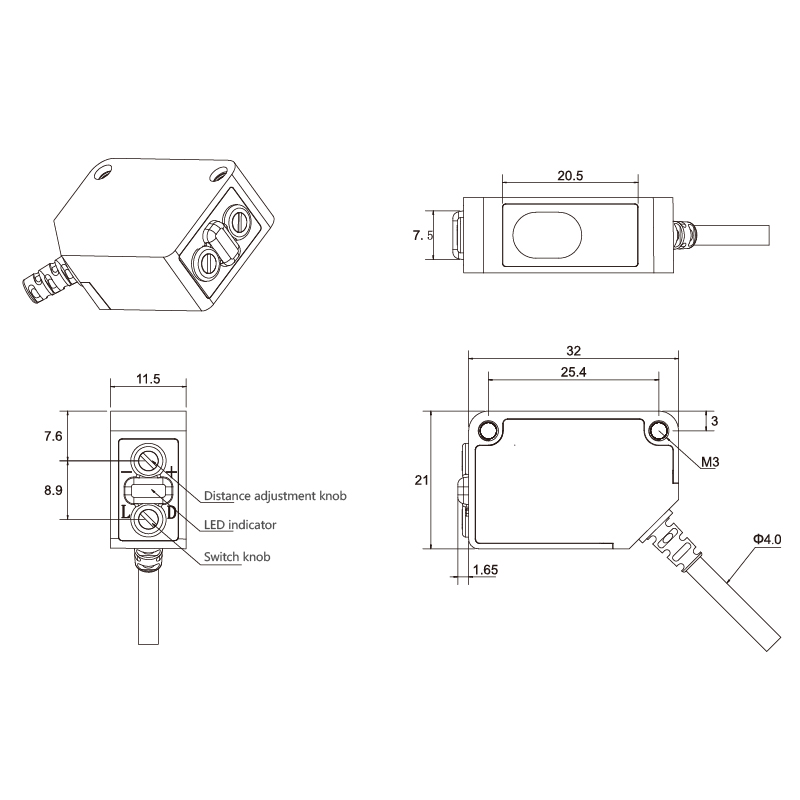

| External dimension | 33.5*21*11.5mm |
| Shell material | PBT+PC |
| Net weight | Approx. 47.5g |
