Versatile Color Detection：Capable of accurately detecting a wide range of colors for diverse applications.
High Contrast Sensitivity：Low black-and-white segment difference ensures precision and reliability in detection.
Strong Color Detection Capability:Ideal for multi-color environments, enabling precise differentiation of complex colors.
High-Precision Contrast Detection:Optimized contrast algorithms ensure accurate identification even with minimal contrast differences.
| Model number | BGD-P10P |
|---|---|
| Detection blind area | ＜30mm |
| repeatability | 2%Detection distance |
| Current consumption | ＜15MA |
| Load current | ＜15MA |
| Load current | 100MA |
| ＜0.01mA No Load | |
| repeatability | ＜2%Detection distance |
| Power reverse protection | There are |
| Output mode | NPN.NO.OR.NC PNP.NO OR.NC |
| Ambient humidity | 35~85% HR relative humidity | Net weight | Approx. 50g/120g |
| Detection mode | Background suppression diffuse reflection type |
|---|---|
| Model number | BGD-P10P |
| Detection distance | 10~100mm±10%(White cardboard)/9~85mm±15%(Black cardstock) |
| Detection blind area | <10mm/td> |
| Return gap | ＜5%Detection distance |
| Adjustable range | Minimum distance:<10mm,Maximum distance：>110mm(Black cardstock) |
| Standard test substance | 100*100mm Black cardstock/White cardboard |
| illuminant | 650nm red modulated light |
| repeatability | 2%Detection distance |
| Operating voltage | 12~24VDC+10% pulse (P-P) less than 10% |
| Current consumption | ＜15MA |
| Load current | ＜15MA |
| Load current | 100MA |
| ＜0.01mA No Load | |
| Residual voltage | <1.5VDC(load current 100mA, wire 2 meters) |
| repeatability | ＜2%Detection distance |
| Response frequency | 300Hz |
| Output short-circuit protection | There are |
| Power reverse protection | There are |

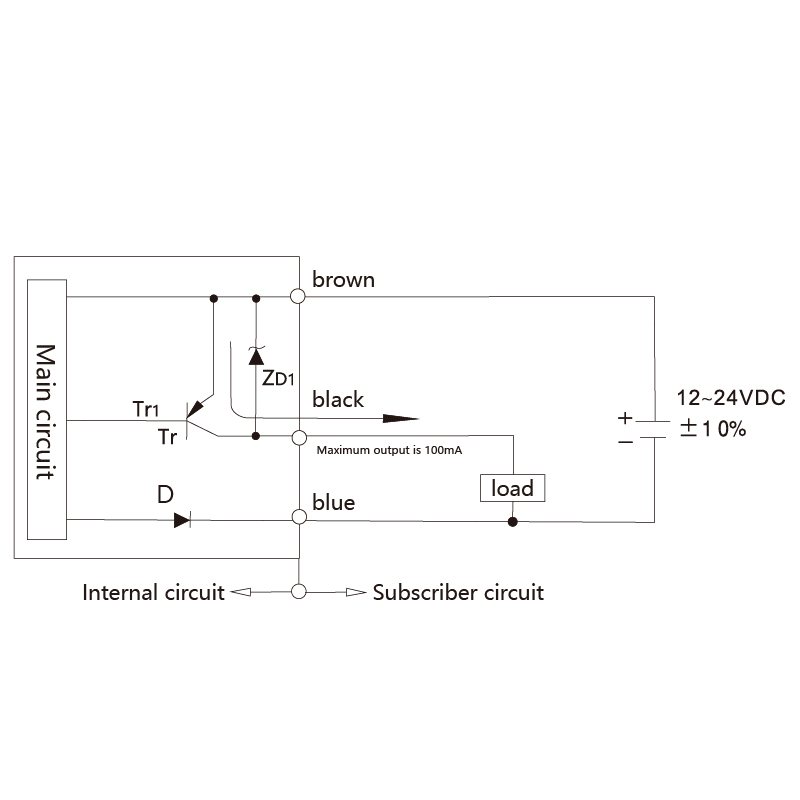

| Output mode | NPN.NO.OR.NC PNP.NO OR.NC |
| Isolation resistance | >250MΩ(between the charging part and the housing) |
| Insulation withstand voltage | 1000VDC 50~60Hz 1mih(between the charging part and the housing) |
| Ambient temperature | -10~50°C(no frost or ice) |
| Ambient humidity | 35~85% HR relative humidity |
| Ambient illumination meter | Daylight: less than 5,000LX Light: less than 3000LX |
| Storage temperature | -20~60 ° C (no frost, ice) |
| Storage humidity | 35~95% HR relative humidity |
| Class of protection | IP65 |
| Connection mode | Φ4.0*2M/3-wires/Φ4 lead 150mm with M8 connector |
| Shell material | ABS+PC+PVC |
| Net weight | Approx. 50g/120g |
