Compact Design: Small-sized sensor for flexible installation, adaptable to complex environments.
High-Speed Response: Response time of less than 1ms ensures fast and efficient operation.
Accurate Detection: Background suppression enables reliable detection within a range of 0-120mm, reducing false positives.
Compact Design: Miniaturized sensor for convenient and flexible installation.
Fast Response: Response time below 1ms, ideal for high-speed detection applications.
Background Suppression: Effective detection range of 0-120mm with reliable background suppression.
Precision Light Spot: Offers adaptable spot sizes for different distances (3mm at 50mm, 9mm at 120mm).
| Detection mode | Background suppression diffuse reflection type |
|---|---|
| Model number | BGD-PS12N |
| Operating voltage | 12~24VDC |
| illuminant | 650nm red modulated light |
| Maximum output current | 50mA |
| Current consumption | ＜25mA |
| Reaction time | 1ms |
| Class of protection | IP65 |
| Trademark | Yakexi |
| brand | Hongfei |
| Origin | China |
| Item | Specification list |
|---|---|
| Detection mode | Background suppression diffuse reflection type |
| Model number | BGD-PS12N |
| 1-120mm(White paper) |
|
| Facula | MIX:3*3mm(50mm) |
| Connection mode | The diameter of the 3-core cable is 2.5mm |
| Operating voltage | 12~24VDC |
| Standard test substance | 100*100mm Black cardstock/White cardboard |
| illuminant | 650nm red modulated light |
| repeatability | 1mm along the detection axis (white matte paper) |
| Sensitivity regulation | 3.5 turns adjustable |
| Maximum output current | 50mA |
| Current consumption | ＜25mA |
| Reaction time | 1ms |
| Short circuit protection | built-in |
| Power polarity reverse protection | built-in |
| Return difference | Less than 5% of the movement distance (white matte paper) |
| Ambient temperature | -25~55°C(no frost or ice) |
| Ambient humidity | 35~85% HR relative humidity |
| Ambient illumination meter | Daylight: less than10,000LX Light: less than 3000LX |
| Class of protection | IP65 |

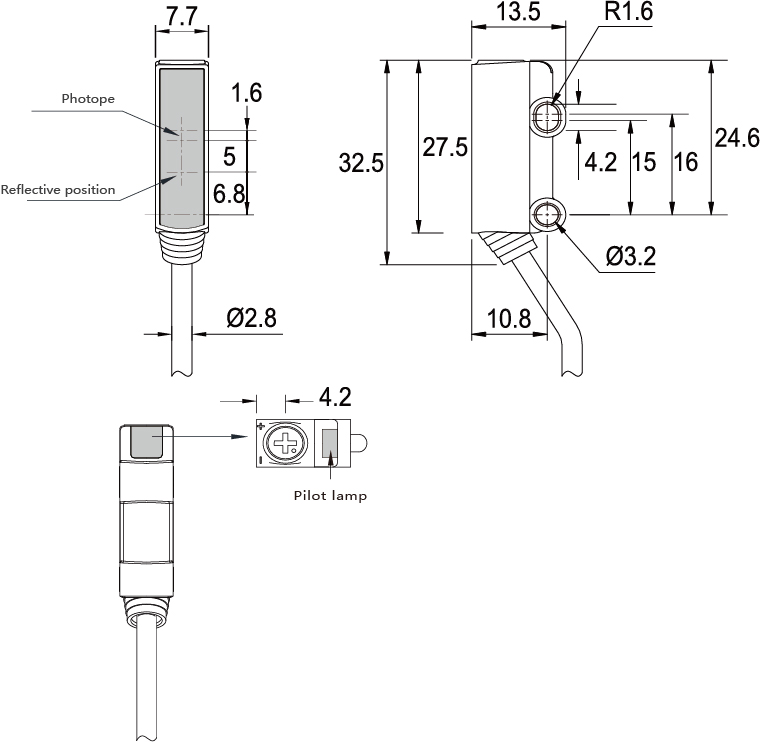

| dimension | 13.5*7.7*32.5mm |
| Housing material | pc Engineering Materials |
