Pressure sensors are used in situations where pressure detection is required and can test for air leakage

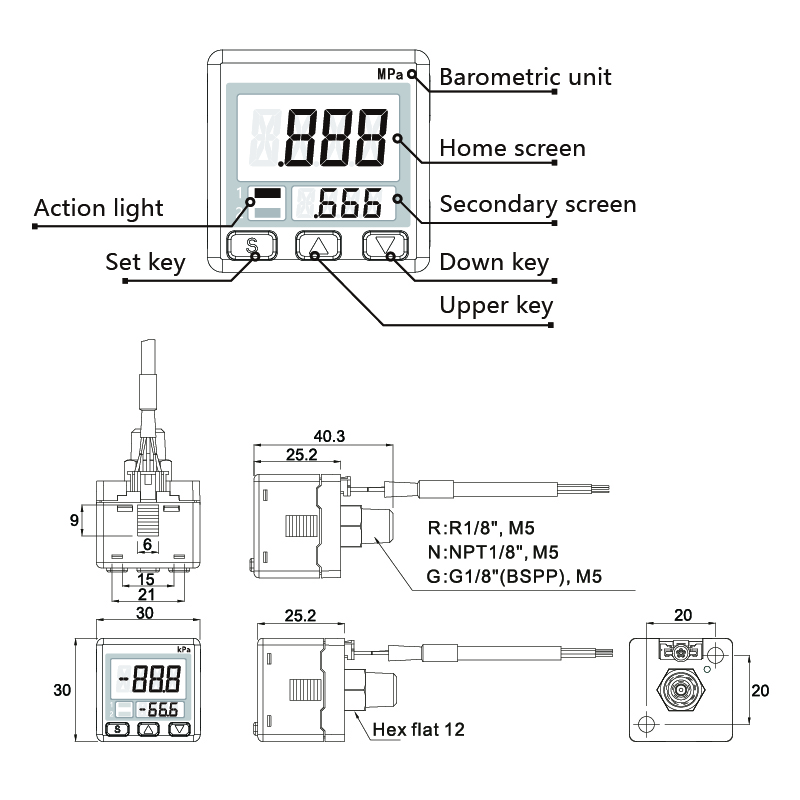

Different from the traditional pointer pressure sensor, the dual-display LED screen is simpler and more accurate
Three-color even-number LED display, the unit is displayed on the screen, two switch quantity, one analog output to provide high voltage, low voltage products, standard analog output 0~5V, using the connector
| Model Number | PS70-H |
|---|---|
| Usage | Control Switch |
| Application | Industrial |
| Explosion-proof Type | Flameproof |
| Contact | Normally Open |
| Contact Type | R1/8, M5 |
| Brand | Hongfei |
| Certification | ISO9001, CE |
| Model Number | PS70-H |
| Place of Origin | Hunan, China |
| Brand Name | Hongfei |
| Rated Pressure Range | -0.101~1.000MPa |
| Set Pressure Range | -0.100-1000MPa |
| Compression Resistance | 1.5MPa |
| Trademark | Yakexi |
| Origin | China |
| Model Number | PS70-H |
|---|---|
| Rated Pressure Range | -0.101~1.000Mpa |
| Set Pressure Range | -0.100~1.000Mpa |
| Maximum Pressure Resistance | 1.5Mpa |
| Applicable Gas | Non-corrosive Gas |
| Power Supply Voltage | 12~24VDC±10% |
| Current Consumption | 45mA below No Load |

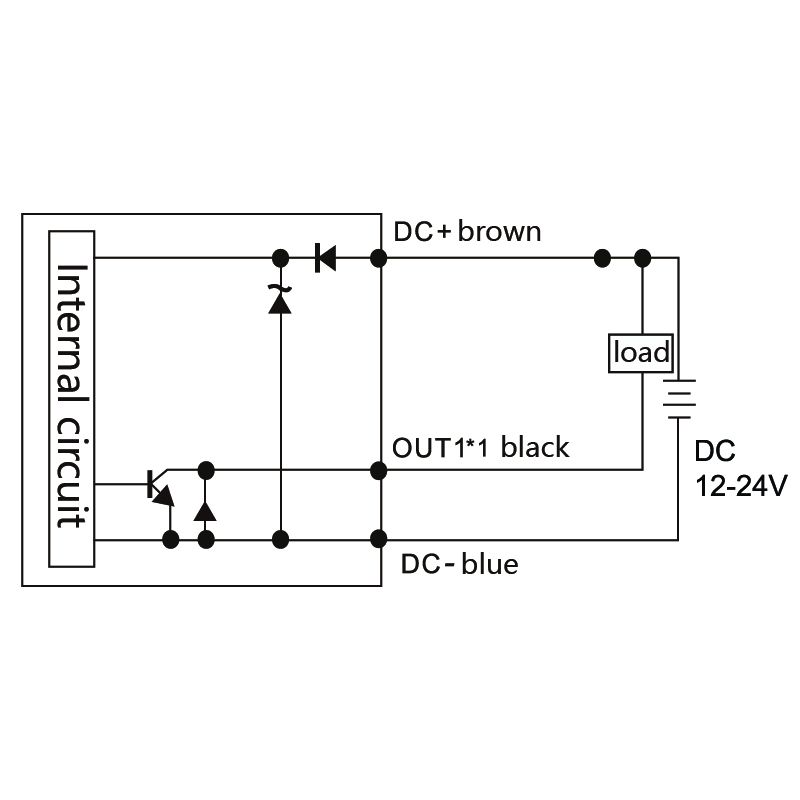

| Comparative Output | NPN set click open output Maximum load current: 100mA Max supply voltage: 30VDC Internal pressure drop: less than 1.5V |
