High Consistency: Product functionality and applications are highly integrated within a single chip, ensuring greater consistency and reliability.
Wide Range of Options: A rich product series with 12 different appearances and slot widths ranging from 5mm to 120mm to meet various application needs.
Versatile Design: Available in 12 different appearances and a wide range of slot widths (5mm to 120mm).
Stability: Features excellent anti-interference performance for stable and reliable operation.
| Output Mode | NPN collector open |
|---|---|
| Repeat Accuracy | 0.01mm |
| Indicator Light | Red LED, lights up when detecting an object |
| Switching Mode | L.on (light-on action) / D.on (dark-on action) switchable |
| Light Source | Infrared LED, 940nm |
| Model | HF-ST303-NV |
|---|---|
| Working Principle | slot sensro |
| Housing Style | Shape T |
| Optical Working Principle | Through-beam |
| Light Source | Infrared LED, 940nm |
| Slot Width | 5.0mm |
| Slot Depth | 8.5mm |
| Detecting Object | 1.2x1.8mm opaque object |
| Indicator Light | Red LED |
| Switching Mode | L.on (light-on action) / D.on (dark-on action) switchable |

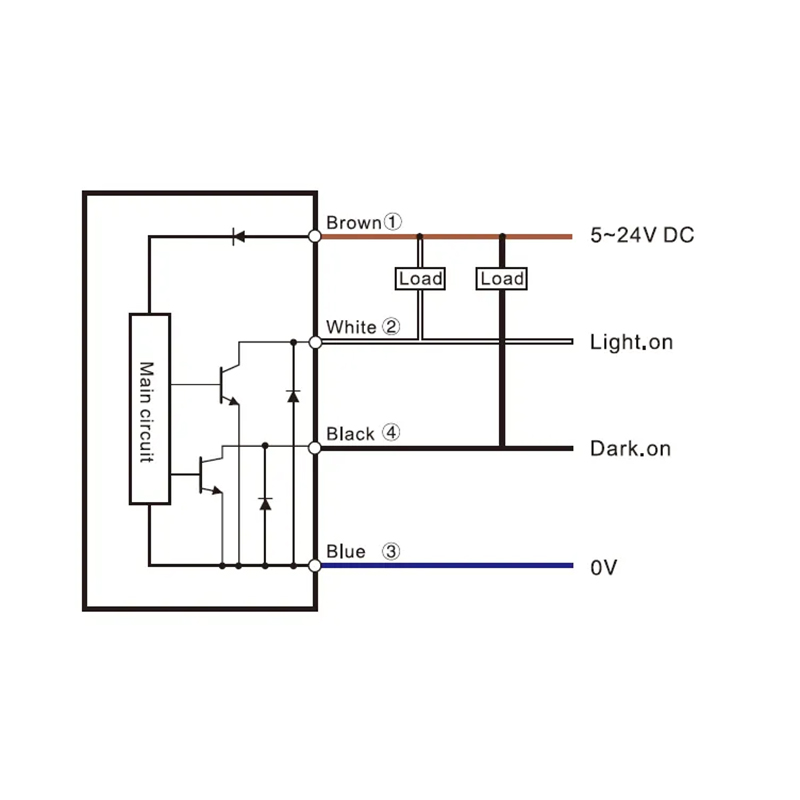

| Output Mode | NPN collector open |
| Response Time | ≤0.33ms |
| Switching Frequency | 3KHz |
| Repeat Accuracy | 0.01mm |
| Hysteresis | <0.2mm |
| Operating Voltage | 5~24V DC |
| Power Consumption | <20mA |
| Residual Voltage | Below 1.5V (with load current of 100mA and 2m wire length) |
| Load Current | ≤100mA (24VDC) |
| Insulation Resistance | ≥20MΩ (250VDC) |
| Withstand Voltage | AC, 1000V for 1 minute, between all power supply connection terminals and the housing |
| Protection Circuit | Reverse polarity protection / surge protection |
| Operating Temperature | -25~55℃ |
| Storage Temperature | -30~80℃ (no freezing) |
| Operating Humidity | 5~85%RH |
| Storage Humidity | 5~95%RH (no condensation) |
| Environmental Illumination | Incandescent light ≤1000 Lux |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Protection Rating | IP50 |
| Connection Method | 2m/4-core cable |

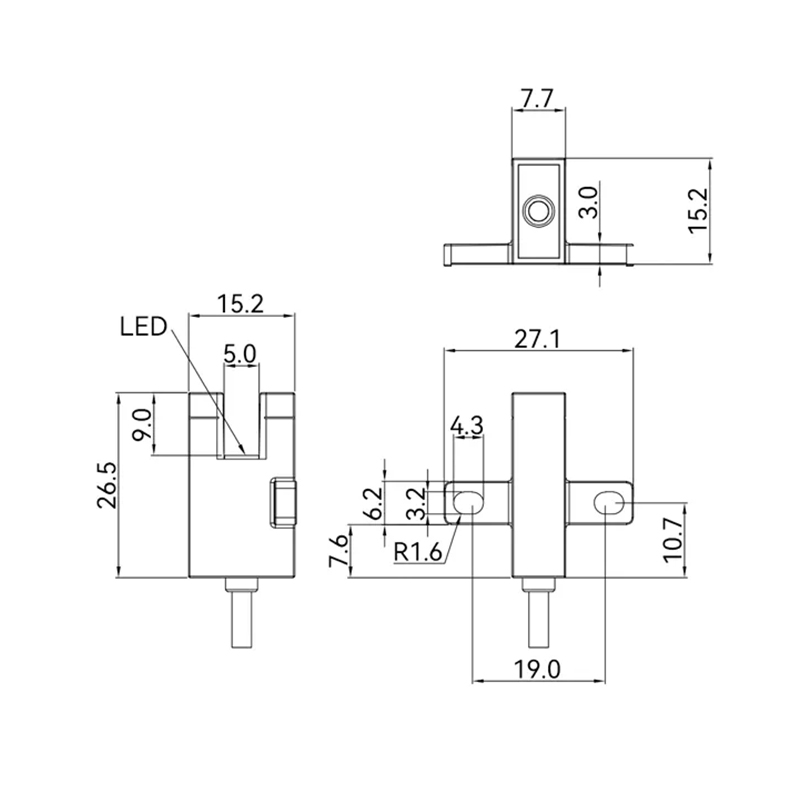

| Dimensions | 26.5x15.2x27.1mm |
| Material | PC |
| Weight | 0.026kg |
