Simple Wiring: Comes with a standard 2m lead wire, extendable as needed.
Versatile Installation: Adaptable for various mounting scenarios and marking detection.
Durable Design: Waterproof, oilproof, and dustproof for reliable performance.
Easy Wiring: Standard 2m cable with extendable options.
Flexible Installation: Supports different mounting configurations.
Enhanced Durability: Resistant to water, oil, and dust for longevity.
| Model number | HF-SOT308FD |
|---|---|
| Detection mode | Relative form |
| Detection distance | 5-10mm |
| Operating voltage | 12~24VDC+10% pulse (P-P) less than 10% |
| Current consumption | <20MA |
| Load current | 100MA |

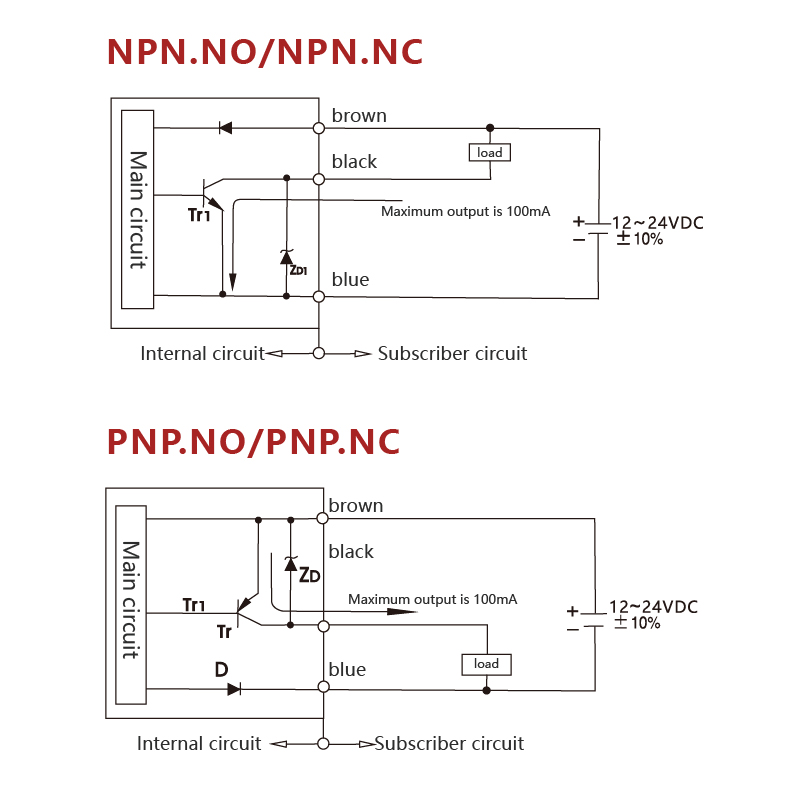

| Output mode | NPN.NO/NON.NC / PNP.NO/PNP.NC |
| Reaction time | 1ms |
| Class of protection | IP54 |
| Shell material | PC infrared transparent material |
| Trademark | Yakexi |
| Brand | Hongfei |
| Origin | China |
| Detection mode | Relative form |
|---|---|
| Model number | HF-SOT308FD |
| Detection distance | 5-10mm/5-10mm |
| Minimum detector | Opaque object Φ1.5*0.8mm |
| Standard test substance | Opaque object Φ1.5*0.8mm above |
| Sensitivity regulation | There is no |
| Illuminant | 940nm red modulated light |
| Hysteresis | 2% Detection distance |
| Operating voltage | 12~24VDC+10% pulse (P-P) less than 10% |
| Current consumption | <20MA |
| Load current | 100MA |
| Leakage current | <0.01mA No Load |
| Residual voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Repeatability | <1% Detection distance |
| Response frequency | 500Hz |
| Power reverse protection | There are |
| Output short-circuit protection | There are |
| Reaction time | 1ms |
| Output mode | NPN.NO/NON.NC PNP.NO/PNP.NC |
| Isolation resistance | >20MΩ (between the charging part and the housing) |
| Insulation withstand voltage | 1000VDC 50~60Hz 1mih (between the charging part and the housing) |
| Ambient temperature | -10~50°C (no frost or ice) |
| Ambient humidity | 35~85% HR relative humidity |
| Ambient illumination meter | Daylight: less than 2000LX Light: less than 1000LX |
| Storage temperature | -20~60°C (no frost, ice) |
| Storage humidity | 35~95% HR relative humidity |
| Class of protection | IP54 |
| Connection mode | Φ2.8 lead 150mm with M8 connector |
| Shell material | PC infrared transparent material |
| Net weight | Approx. 24g/24.5g |
