360° Visible Indicator: Ensures all-angle visibility for quick status checks.
High Response Frequency: Operates at 5kHz, ideal for fast detection.
Micro Object Detection: Detects objects as small as Φ2*0.9mm.
360° Indicator Light: Visible from all angles.
5kHz Frequency: Supports high-speed detection.
IP66 Waterproof: Reliable in wet and dusty environments.
| Model number | HF-SOU202R |
|---|---|
| Detection mode | Relative form |
| Minimum detector | Opaque object Φ 2*0.8mm |
| Operating voltage | 12~24VDC±10% |
| Current consumption | ＜15MA |
| Load current | 100MA |
| Repeatability | ＜1% Detection distance |
| Output mode | NPN.NO.NC |
| Class of protection | IP66 |
| Shell material | PET+PVC |
| Trademark | Yakexi |
| Brand | Hongfei |
| Origin | China |
| Model number | HF-SOU202R |
|---|---|
| Detection mode | Relative form |
| Minimum detector | Opaque object Φ 2*0.8mm |
| Standard test substance | Opaque object Φ 2*0.8mm above |
| Sensitivity regulation | There is no |
| Illuminant | 940nm red modulated light |
| Hysteresis | <2% Detection distance |
| Operating voltage | 12~24VDC±10% |
| Current consumption | <15MA |
| Load current | 100MA |
| Leakage current | <0.01mA No Load |
| Residual voltage | <1.5VDC (load current 100mA, wire 2 meters) |
| Repeatability | <1% Detection distance |
| Response frequency | 5000Hz |
| Response time | 0.2ms |
| Power reverse protection | There are |
| Output short-circuit protection | There are |

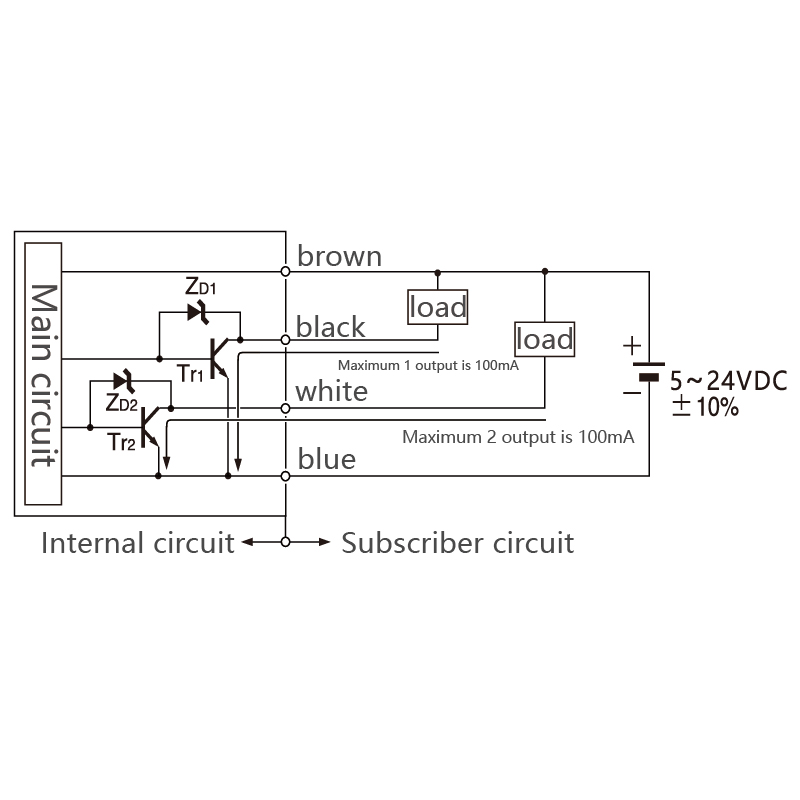

| Output mode | NPN.NO.NC |
| Pilot lamp | There are (red) |
| Connection mode | Φ2.8*2M/4-wires/Φ2.8*5m/4-wires Flexible thread |
| Class of protection | IP66 |
| Ambient temperature | -10~50°C (no frost or ice) |
| Storage temperature | -20~60°C (no frost or ice) |
| Ambient illumination meter | Daylight: less than 3,000LX Light: less than 2000LX |
| Storage humidity | 35~85% HR relative humidity |
| Insulation resistance | >20MΩ (between the charging part and the housing) |
| Connection mode | Φ4.0*2M/3-wires/Φ4 lead 150mm with M8 connector |
| Shell material | PET+PVC |
| Net weight | Approx. 23.5g |
