Long Service Life: Designed to last up to 8 years, providing durability and cost-efficiency.
Multiple Shell Materials and Sizes: Offers a variety of shell materials and sizes, allowing for flexible adaptation to different applications.
IP67 Protection Rating: Outstanding water and oil resistance for operation in challenging environments.
Built-in Protection: Features reverse polarity, short circuit, and surge protection for enhanced safety and reliability.
| Detection Distance | 16mm |
|---|---|
| Output Mode | NPN |

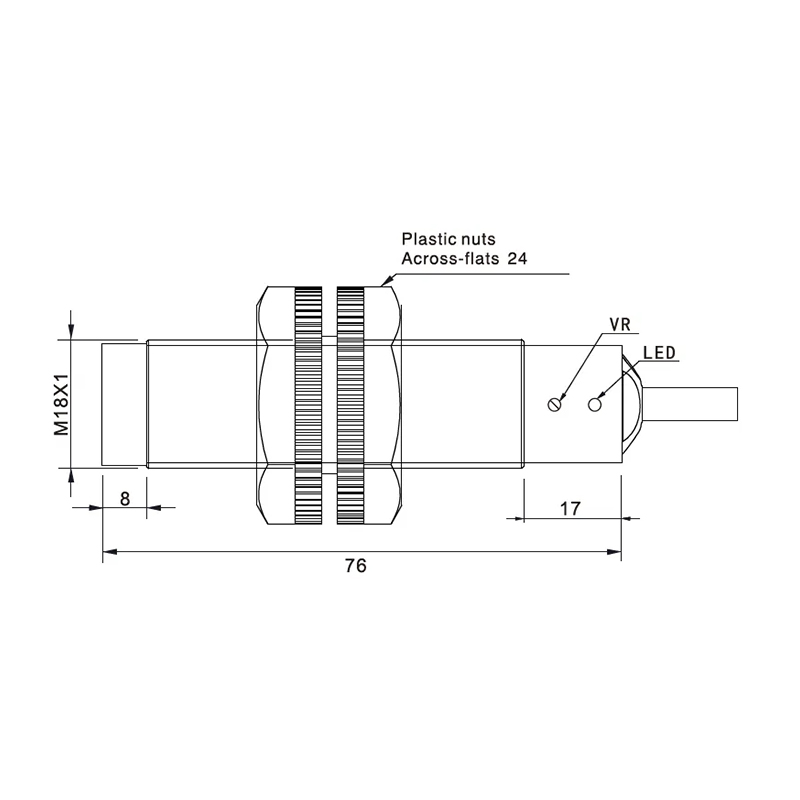

| Dimensions | M18*76.0mm |
| Repeat Accuracy | 5% |
| Indicator Light | Operating status: LED |
| Model | HFSC18-16NC |
|---|---|
| Working principle | Capacitive sensor |
| Housing | Cylindrical |
| Installation type | Non-flush |
| Sensing distance | 16mm |
| Thread size | M18 |
| Sensing Surface Material | PBT |
| Detected objects | Metal, liquid, powder, wood, paper, plastic and other materials |
| Indicator | Operating status: LED |
| Sensing range adjustment | Available |
| Switching output | Normally open |
| Output Mode | NPN |
| External input | None |
| Switching frequency | 0.1 kHz |
| Repeatability | 5% |
| Hysteresis | 15% |
| Operating Voltage | 10~30V DC ±10% |
| Current Consumption | ≤10mA |
| Residual Voltage | ≤2V |
| Load Current | 300mA |
| Leakage Current | < 0.01 mA |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Circuit Protection | Short circuit protection |
| Operating temperature | -25~75℃ |
| Operating humidity | 35~85% |
| Enclosure rating | IP67 |
| Connection type | 2m/3 wire cable |
| Dimension | M18x76.0mm |
| Material | PBT |
| Weight | 0.08kg |
| Accessories | Nut M18x1.0 |
