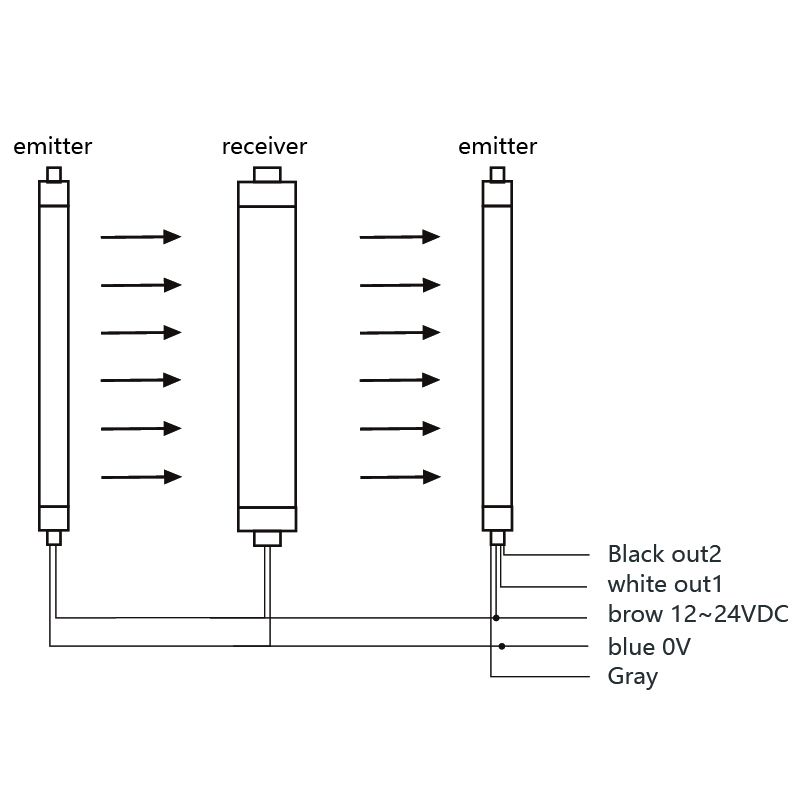

Multiple Output Types: It provides 2 NPN outputs and 2 PNP outputs, accommodating different wiring needs and enhancing application flexibility.
Short Circuit Protection: Equipped with short circuit protection to effectively prevent damage caused by accidental short circuits, improving safety and reliability.
IP54 Protection Rating: With an IP54 protection rating, it is dustproof and resistant to limited water splashing, making it suitable for most industrial environments.
Durable Housing: The aluminum alloy housing offers excellent durability and corrosion resistance, while the end cover is made of ABS engineering plastic, further enhancing wear resistance and impact resistance.
| Model table | HSLUS20D-8NSFD |
|---|---|
| Number of light axes | 4/6/8/10 to 64 Optional |
| Light axis distance | 10mm |
| Resolution | 25mm |

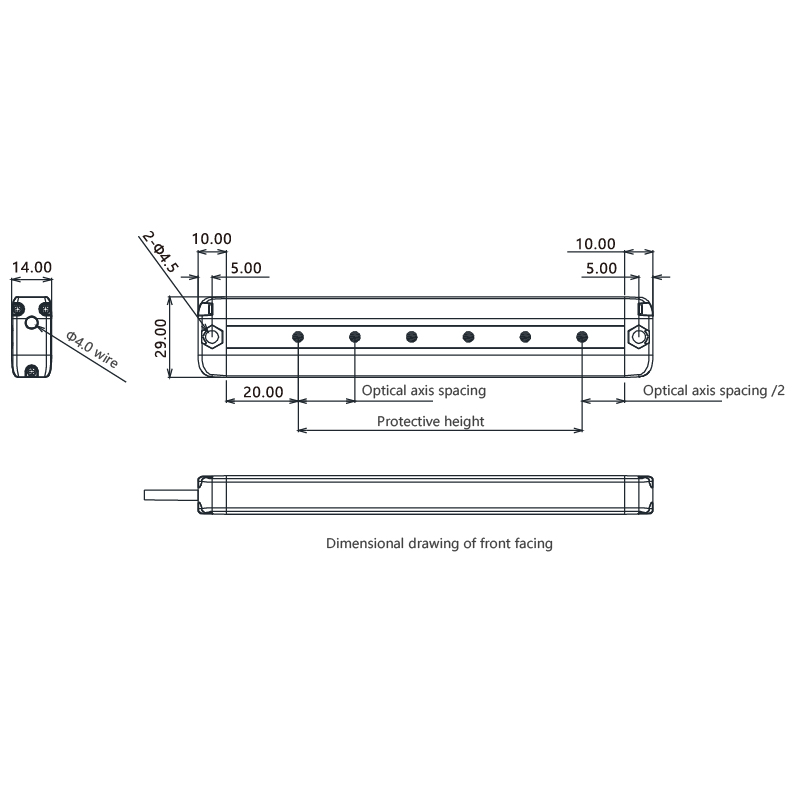

| Total height of the light curtain | Optical axis number 10+35 |
| Power supply voltage | 12-24VDC |
| Power consumption | ≤2.5W |
| Response time | ≤20ms |
| Synchronous response | photosynchronization |
| Insulation resistance | >100MΩ |
| Output current | 100mA(Max) |
| Trademark | Yakexi |
| brand | Hongfei |
| Origin | China |
| Model | HSLUS20D-8NSFD |
|---|---|
| Number of light axes | 4/6/8/10 to 64 Optional |
| Light axis distance | 20mm |
| Resolution | 25mm |
| Total height of the light curtain | Optical axis number × 20 + 30 |
| Detection range | 0.3-1.5m |
| Protection height | (Number of optical axes - 1) × Optical axis spacing |
| Control output | Incoming light output |
| Power supply voltage | 12-24VDC |
| Power consumption | ≤2.5W |
| Response time | ≤20ms |
| Synchronous response | Photosynchronization |
| Insulation resistance | >100MΩ |
| Dielectric constant | AC1500V, Lmin no breakdown or flashover |
| Output current | 100mA (Max) |
| Indicator (emitter) | The red power indicator is on |
| Indicator (receiver) | If the output is green, the output is red |
| Operating environment temperature | -10℃~55℃ (do not frost, freeze) |
| Operating environment humidity | 15%~85%RH |
| Anti-light interference of operating environment | 10000Lux (incidence ≤5°) |
