TUV Certified Safety Level 4, suitable for high-risk areas, providing reliable safety protection.
Fastening structure design, offering strong seismic resistance, ensuring stable performance in harsh environments.
Detection Distance: 1~6m, covering most common protection scenarios, adaptable to various application needs.
Shell Structure: Fastened shell design with excellent performance in pressure resistance, vibration resistance, and impact resistance, enhancing product durability and reliability.
| Beam Pitch | 40mm |
|---|---|
| Protection Height | 280mm |
| Protection Distance | 0.1~6m |
| Number of Beams | 4 beams |
| Output Mode | NPN |
| Model | HSLEC-40T46NO |
|---|---|
| Working principle | Safety light curtain |
| Housing | Array |
| Optical working principle | Thru-beam |
| Light Source | Infrared light, 860nm (modulated) |
| Beam Pitch | 40mm |
| Number of beams | 4 beams |
| Protection Height | 314.6mm |
| Protection Distance | 0.1~6m |
| Mini. detectable object | Opaque body above φ48mm |
| Output Mode | NPN |
| Synchronization Type | Line Synchronization |
| Response Time | ≤20ms |
| Operating Voltage | 12~24VDC ±10% |
| Current Consumption | Launch end < 200mA; Receiving end < 200mA |
| Power Consumption | 3~8W |
| Residual Voltage | ≤2.0V (150mA) / < 2.0V |
| Load Current | ≤150mA |
| Insulation Resistance | ≥100MΩ (500VDC) / ±500V 50/60Hz 60s between the power terminal and housing |
| Dielectric strength | 500VAC (50/60Hz), 1 minute between the power terminal and housing / ±500V 50/60Hz 60s |
| Protection Circuit | Reverse polarity protection / short circuit protection / surge protection |
| Operating temperature | -10~55℃ (without freezing) |
| Storage Temperature | -10~55℃ (without freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35~95%RH (no condensation) |
| Ambient Illumination | Incandescent lamp ≤3000Lux; LED lamp ≤3000Lux; Sunlight ≤10000Lux |
| Vibration Resistance | 10 to 55Hz / 150Hz, double amplitudes 1.5mm, X/Y/Z axis, 2 hours each |
| Protection class | IP65 |
| Connection type | Cable |

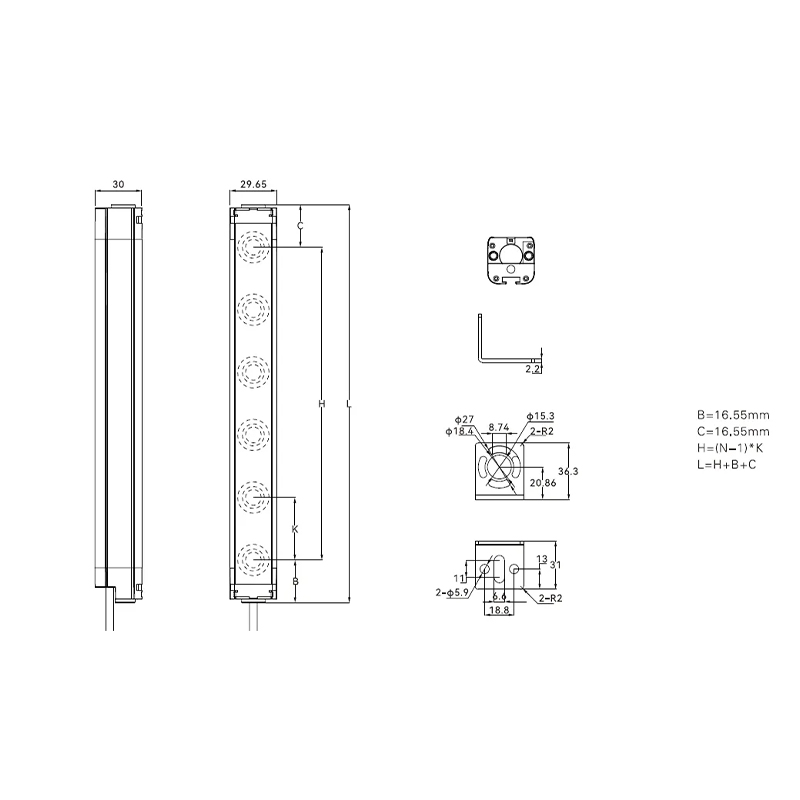

| Dimensions | 214.6~1274.6x30x29.65mm |
| Material | Aluminum |
| Weight | 0.62~6.37kg |
| Accessories | Right Angle bracket, M12/5 pin plug cable x2 |
